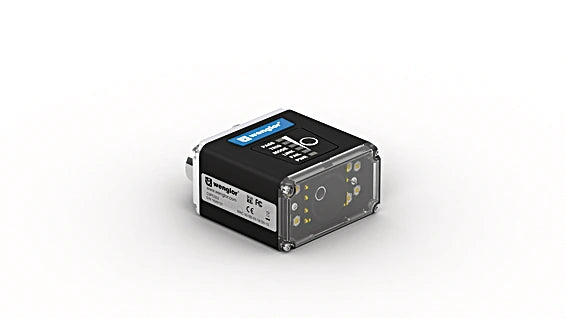

C5PC112 - Versatile 1D/2D Code Scanner for Omnidirectional Scanning

C5PC112 - Versatile 1D/2D Code Scanner for Omnidirectional Scanning

SKU: C5PC112 Download PDF

Variant:
  • C5PC112 - Versatile 1D/2D Code Scanner for Omnidirectional Scanning
Now $29.20
BEFORE   $0.00 Now $29.20
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience seamless scanning with these versatile 2D code scanners, expertly designed for omnidirectional reading of both 1D and 2D barcodes They efficiently process a range of code types including: - **1D Codes**: Code39, Code93, Code128, UPC/EAN, BC412, Interleaved 2 of 5, Codabar, Postal Codes, and Pharmacode - **2D Codes**: DataMatrix (ECC 0-200), PDF417, Micro PDF417, QR Code, Micro QR Code, Aztec Code, GS1 Databar, and Dot Code.

Additional code formats can be accommodated upon request, making these scanners an ideal choice for diverse scanning applications.

Features and Benefits:

    •Auto-button function.

    •Integrated LED illumination.

    •Integrated code reconstruction.

    •PROFINET and EtherNet/IP.

Specifications:

 Barcode Density Long range
 Read Range 50 ... 1,200 mm
 Resolution 1,280 × 960 Pixel
 Focal distance 16 mm
 Pixel Size 3.75 × 3.75 µm
 Light Source Red Light
 Wavelength 617 nm
 Focus Autofocus
 min. Resolution > 0.051 mm
 Temperature Range 0 ... 45 °C
 Atmospheric humidity 5...95%, non-condensing
 Supply Voltage 5 ... 30 V DC
 Current Consumption 180 mA
 Scan Rate 42 scans/sec
 Switching Output Optoisolator
 Number of Switching Outputs 3
 Switching Output / Switching Current < 100 mA
 Reverse Polarity Protection yes
 Interface RS-232/Ethernet
 Trigger Input Optoisolator
 Signal Input Optoisolator
 Number of Signal Inputs 3
 Setting Method Ethernet
 Housing Material Aluminum, anodised
 Optic Cover Plastic, PMMA
 Degree of Protection IP65, IP67
 UL Enclosure Type 1
 Connection M12 × 1; 12-pin
 Type of Connection Ethernet M12 × 1; 8-pin
 Minimum object distance 75 mm
 Output PNP NO/NC switchable yes
 NPN NO/NC switchable yes
 Ethernet yes
 PROFINET-I/O, CC-B yes
 EtherNet/IP yes
