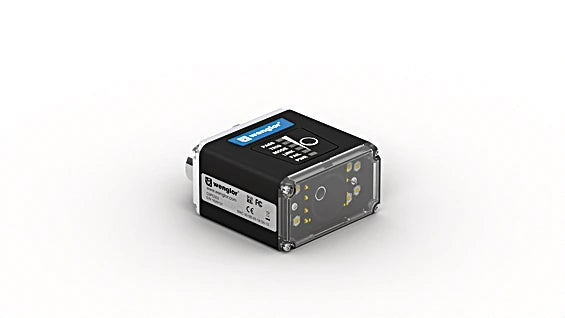

C5PC110 - Versatile 1D/2D Code Scanner for Quick Omnidirectional Scanning

C5PC110 - Versatile 1D/2D Code Scanner for Quick Omnidirectional Scanning

SKU: C5PC110   Download PDF

Select a Variant:
  • C5PC110 - Versatile 1D/2D Code Scanner for Quick Omnidirectional Scanning
Qty:
Now $29.20   Web pricing policy
BEFORE   $0.00 Now $29.20 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Elevate your scanning capabilities with this versatile 2D code scanner, engineered for seamless omnidirectional scanning of both 1D and 2D barcodes It efficiently recognizes a variety of code types, including popular 1D formats such as Code39, Code93, Code128, UPC/EAN, BC412, Interleaved 2 of 5, Codabar, Postal Codes, and Pharmacode When it comes to 2D codes, it processes DataMatrix ECC 0200, PDF417, Micro PDF417, QR-Code, Micro QR-Code, Aztec Code, GS1 Databar, and Dot code.

Should you need support for other code types, feel free to inquire.

Features and Benefits:

    •Auto-button function.

    •Integrated LED illumination.

    •Integrated code reconstruction.

    •Optical Data Barcode Density.

    •Read Range: 50 ... 300 mm.

    •Resolution: 1,280 × 960 Pixel.

    •Resolution: 1.2 MP.

    •Focal distance: 5.2 mm.

    •Pixel Size: 3.75 × 3.75 µm.

    •Light Source: Red Light, Wavelength: 617 nm.

    •Focus: Autofocus.

    •min. Resolution: > 0.08 mm.

    •Reverse Polarity Protection: yes.

Specifications:

 Temperature Range 0 ... 45 °C
 Atmospheric humidity 5...95%, non-condensing
 Supply Voltage 5 ... 30 V DC
 Current Consumption (Ub = 24 V) 180 mA
 Scan Rate 42 scans/sec
 Switching Output Optoisolator
 Number of Switching Outputs 3
 Switching Output/Switching Current < 100 mA
 Interface RS-232/Ethernet
 Trigger Input Optoisolator
 Number of Signal Inputs 3
 Setting Method Ethernet
 Housing Material Aluminum, anodised
 Optic Cover Plastic, PMMA
 Degree of Protection IP65, IP67
 UL Enclosure Type 1
 Connection M12 × 1; 12-pin
 Type of Connection Ethernet M12 × 1; 8-pin
 Minimum object distance 50 mm
 Output PNP NO/NC switchable yes
 NPN NO/NC switchable yes
 Ethernet yes
 PROFINET-I/O, CC-B yes
 EtherNet/IP yes
