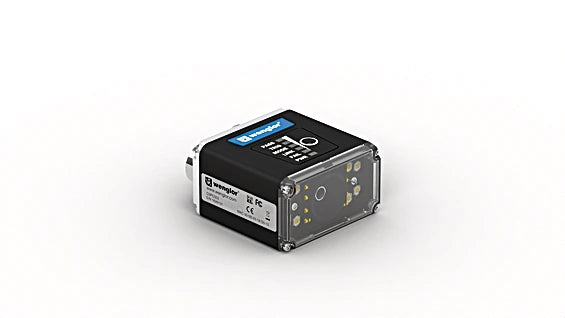

C5PC102 - Versatile 1D/2D Code Scanner for Quick Omnidirectional Scanning

C5PC102 - Versatile 1D/2D Code Scanner for Quick Omnidirectional Scanning

SKU: C5PC102 Download PDF

Variant:
  • C5PC102 - Versatile 1D/2D Code Scanner for Quick Omnidirectional Scanning
Now $2,067.00
BEFORE   $0.00 Now $2,067.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience seamless scanning with these versatile 2D code scanners, perfect for both 1D and 2D codes They effortlessly handle a variety of code formats, including 1D codes such as Code39, Code93, Code128, UPC/EAN, BC412, Interleaved 2 of 5, Codabar, Postal Codes, and Pharmacode Additionally, they scan 2D codes like DataMatrix ECC 0200, PDF417, Micro PDF417, QR-Code, Micro QR-Code, Aztec Code, GS1 Databar, and Dot code.

For more specialized needs, additional code types can be accommodated upon request .

Features and Benefits:

    •Auto-button function.

    •Integrated LED illumination.

    •Integrated code reconstruction.

    •PROFINET and EtherNet/IP support.

Specifications:

 Barcode Density Standard density
 Read Range 102 mm
 Resolution 752 × 480 Pixel
 Focal distance 5.2 mm
 Pixel Size 6 × 6 µm
 Light Source Red Light
 Wavelength 617 nm
 Focus Fix
 X-Dimension 95 mm
 Y-Dimension 60 mm
 min. Resolution > 0.381 mm
 Temperature Range 0 ... 45 °C
 Atmospheric humidity 5...95%, non-condensing
 Supply Voltage 5 ... 30 V DC
 Current Consumption 180 mA
 Scan Rate 60 scans/sec
 Switching Output Optoisolator
 Number of Switching Outputs 3
 Switching Output/Switching Current < 100 mA
 Reverse Polarity Protection yes
 Interface RS-232/Ethernet
 Trigger Input Optoisolator
 Number of Signal Inputs 3
 Setting Method Ethernet
 Housing Material Aluminum, anodised
 Optic Cover Plastic, PMMA
 Degree of Protection IP65, IP67
 UL Enclosure Type 1
 Connection M12 × 1; 12-pin
 Type of Connection Ethernet M12 × 1; 8-pin
 Minimum object distance 100 mm
 Output PNP NO/NC switchable yes
 Output NPN NO/NC switchable yes
 Ethernet yes
 PROFINET-I/O, CC-B yes
 EtherNet/IP yes
