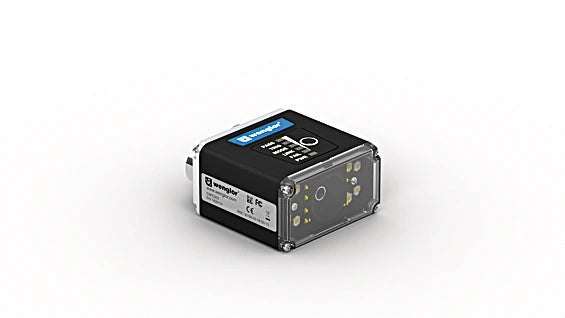

C5PC100 - Versatile 1D/2D Code Scanner with LED and Auto-Button Function

C5PC100 - Versatile 1D/2D Code Scanner with LED and Auto-Button Function

SKU: C5PC100 Download PDF

Variant:
  • C5PC100 - Versatile 1D/2D Code Scanner with LED and Auto-Button Function
Now $2,067.00
BEFORE   $0.00 Now $2,067.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience seamless scanning with the versatile 1D/2D Code Scanner, engineered for omnidirectional use This device excels in processing various code formats, including 1D types such as Code39, Code93, Code128, UPC/EAN, BC412, Interleaved 2 of 5, Codabar, Postal Codes, and Pharmacode It also efficiently reads a wide array of 2D codes, including DataMatrix ECC versions 0 to 200, PDF417, Micro PDF417, QR-Code, Micro QR-Code, Aztec Code, GS1 Databar, and Dot code.

For any additional code formats you may need, inquiries are welcome Enhanced with user-friendly auto-button functionality, integrated LED lighting, and built-in code reconstruction, this scanner ensures reliable performance for all your scanning tasks.

Features and Benefits:

    •Omnidirectional scanning of both 1D and 2D codes.

    •Auto-button function.

    •Integrated LED illumination.

    •Integrated code reconstruction.

Specifications:

 Barcode Density Standard density
 Read Range 50 mm
 Resolution 752 × 480 Pixel
 Pixel Size 6 × 6 µm
 Light Source Red Light
 Wavelength 617 nm
 Focus Fix
 X-Dimension 49 mm
 Y-Dimension 32 mm
 min. Resolution > 0.191 mm
 Temperature Range 0 ... 45 °C
 Atmospheric humidity 5...95%, non-condensing
 Supply Voltage 5 ... 30 V DC
 Current Consumption 180 mA (Ub = 24 V)
 Scan Rate 60 scans/sec
 Switching Output Optoisolator
 Number of Switching Outputs 3
 Switching Output/Switching Current < 100 mA
 Reverse Polarity Protection yes
 Interface RS-232/Ethernet
 Trigger Input Optoisolator
 Number of Signal Inputs 3
 Setting Method Ethernet
 Housing Material Aluminum, anodised
 Optic Cover Plastic, PMMA
 Degree of Protection IP65, IP67
 UL Enclosure Type 1
 Connection M12 × 1; 12-pin
 Minimum object distance 40 mm
 Output PNP NO/NC switchable yes
 NPN NO/NC switchable yes
 Ethernet yes
 PROFINET-I/O, CC-B yes
 EtherNet/IP yes
