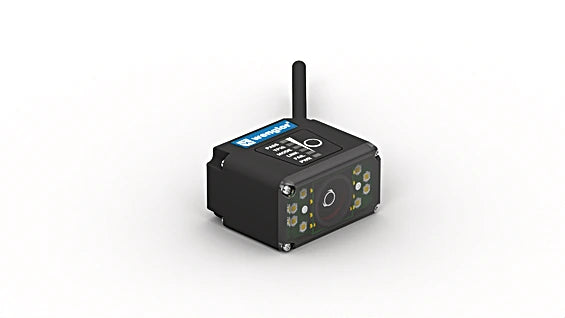

C5KC001 - Versatile 1D/2D Code Scanner for Omnidirectional Use

C5KC001 - Versatile 1D/2D Code Scanner for Omnidirectional Use

SKU: SKU: C5KC001 Download PDF

Variant:
  • C5KC001 - Versatile 1D/2D Code Scanner for Omnidirectional Use
Regular price Now $2,075.00
Regular price BEFORE   $0.00 Sale price Now $2,075.00
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover the versatility of these 2D code scanners, engineered for seamless omnidirectional scanning of both 1D and 2D barcodes This device efficiently recognizes a wide array of code types, including popular 1D formats such as Code39, Code93, Code128, UPC/EAN, BC412, Interleaved 2 of 5, Codabar, Postal Codes, and Pharmacode On the 2D side, it covers formats including DataMatrix ECC 0200, PDF417, Micro PDF417, QR-Code, Micro QR-Code, Aztec Code, GS1 Databar, and Dot code.

If you need compatibility with additional code types, simply reach out for custom solutions This powerful scanner is an essential tool for your data collection needs.

Features and Benefits:

    •Auto-button function.

    •Integrated LED illumination.

    •Integrated code reconstruction.

Specifications:

 Barcode Density Standard density
 Resolution 1,280 × 960 Pixel
 Focal distance 5.2 mm
 Pixel Size 3.75 × 3.75 µm
 Light Source Red Light
 Wavelength 617 nm
 Service Life (T = +25 °C) 50,000 h
 Temperature Range 0 ... 40 °C
 Supply Voltage 5 V DC
 Current Consumption (Ub = 24 V) 600 mA
 Scan Rate 10 scans/sec
 Switching Output TTL
 Number of Switching Outputs 3
 Switching Output / Switching Current < 100 mA
 Reverse Polarity Protection yes
 Interface USB/RS-232
 Trigger Input Optoisolator
 Number of Signal Inputs 3
 Housing Material Aluminum, anodised
 Optic Cover Plastic, PMMA
 Degree of Protection IP54
 UL Enclosure Type 1
 Connection SubD 15-pin
 Minimum object distance 50 mm
