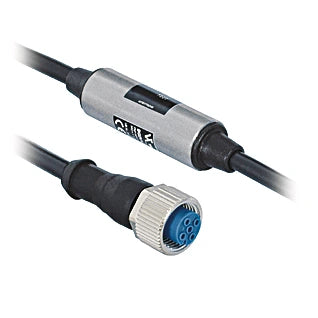

BG2V1P-N-2M - IP67 PNP-NPN Converter, 10-30V DC, 200 mA Output

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PNP-NPN Converter, a robust solution engineered with an IP67 protection rating, ensuring compatibility for a wide range of applications This converter operates within a supply voltage range of 10 to 30 V DC and boasts an impressive low current draw of under 2 mA at 24 V It features a reliable switching output that can handle up to 200 mA, with a frequency of 5 kHz Enjoy quick responsiveness with a 100 µs reaction time and minimal residual current of less than 50 µA.

Additionally, the device is equipped with essential safeguards, including short circuit, reverse polarity, and overload protections, making it a durable and dependable choice for your electronic needs.

Features and Benefits:

•High protection class IP67.

•Supply voltage range of 10...30 V DC.

•Low current consumption of less than 2 mA.

•Switching output current up to 200 mA.

•Fast switching frequency of 5 kHz.

•Short circuit, reverse polarity, and overload protection.

Specifications:
