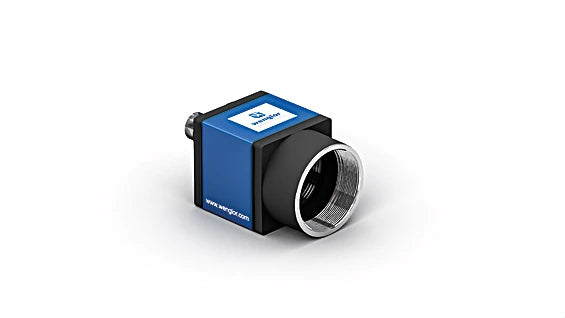

BB6K002 - Compact Machine Vision Camera with Global Shutter & PoE Connectivity

BB6K002 - Compact Machine Vision Camera with Global Shutter & PoE Connectivity

SKU: BB6K002   Download PDF

Select a Variant:
  • BB6K002 - Compact Machine Vision Camera with Global Shutter & PoE Connectivity
Qty:
Now $2,247.00   Web pricing policy
BEFORE   $0.00 Now $2,247.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Capture stunning images for your vision applications with this high-performance Machine Vision Camera Utilizing a 1-gigabit Ethernet interface for seamless data transfer, it simplifies your setup with a single cable connection through its PoE port The compact and robust aluminum casing, combined with a versatile C-mount threaded connection, allows for easy integration into various systems Powered by the advanced Sony Pregius image sensor, this camera delivers exceptional frame rates and clarity, producing sharp, noise-free images even in challenging lighting scenarios, thanks to its Global Shutter technology.

Features and Benefits:

    •Image chip with Global Shutter for dynamic applications.

    •Compact and robust aluminum housing in 29 × 49.1 × 29 mm format.

    •Different lenses can be adapted thanks to standard thread.

Specifications:

 Resolution 1,456 × 1,088 Pixel
 Resolution MP 1.6 MP
 Aspect Ratio 4:3
 Pixel Size 3.45 × 3.45 µm
 Sensor Type CMOS
 Sensor Designation Sony IMX273LQR-C
 Image Chip color
 Image chip size 1/3"
 Frame rate (fullframe) < 76 fps
 Supply Voltage 12 ... 24 V DC
 Current Consumption (Ub = 24 V) < 130 mA
 Temperature Range 0 ... 55 °C
 Storage temperature -20 ... 60 °C
 Atmospheric humidity 20...80%
 Number of GPIOs (general purpose I/Os) 2
 GPIO voltage range 0 ... 3.3 V DC
 GPIO maximum output current 8 mA
 GPIO protective circuit no
 Number of Flash Outputs 1
 Flash Output Optoisolator
 Number of trigger inputs 1
 Trigger Input Optoisolator
 Short Circuit Protection no
 Overload Protection no
 Supported PoE Classes 2
 Supported PoE Standard IEEE802.3af, IEEE802.at
 Protection Class III
 Lens thread C-Mount
 Housing Material Aluminum, powder-coated
 Optic Cover Glass
 Degree of Protection IP30
 Connection HR25, 8-pin
 Type of Connection Ethernet RJ45, 8-pin
 Weight 49 g
 Diagnostic Coverage (DC) 0 %
 MTTFd (EN ISO 13849-1) 90.29 a
 Mission Time TM (EN ISO 13849-1) 20 a
 Function Global Shutter yes
 Subsampling yes
 Interface Ethernet yes
 Output PoE yes
