Description:

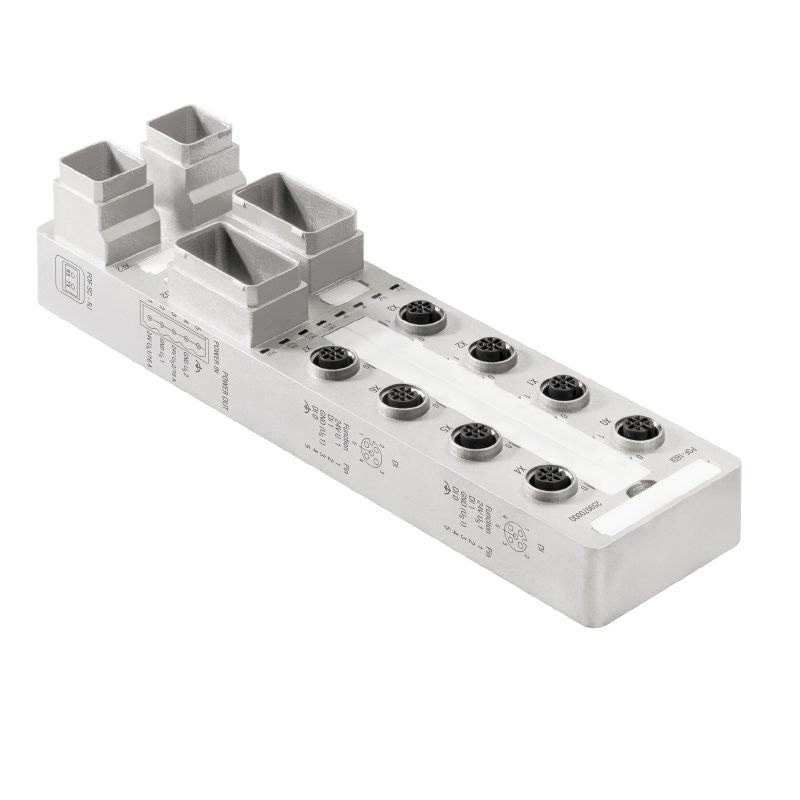

Introducing the UR67-PN-V14-POF-16DI-12, an advanced active distributor tailored for sensor-actuator applications that comply with the PROFINET V23 standard This reliable device is RoHS certified and bears a UL approval, ensuring quality and safety
Constructed with a sturdy zinc die-cast housing, it is built to last and is rated with an IP67 protection degree, making it suitable for diverse environments.
The unit offers 16 digital inputs with adjustable delays, and it accommodates both 2-wire and 3-wire sensor wiring, providing versatility in various applications.
Features and Benefits:
•Compliant with RoHS and UL standards.
•Zinc diecast main housing for durability.
•IP67 protection degree for environmental resilience.
•16 digital inputs with adjustable input delay.
•Reverse polarity protection is included.
•Sensor-actuator systems in industrial automation.
Specifications:
| Height | 51 mm |
| Width | 60 mm |
| Length | 255 mm |
| Net weight | 700 g |
| Input voltage, high | > 11 V |
| Input voltage, low | < 5 V |
| Supply voltage | 18 V DC ... 30 V DC |
| Operating voltage | 24 V |
| Max. total current module | 150 mA |
| Digital inputs | 16 |
| Protection degree | IP67 |
| Connections | V14 PushPull SC-RJ POF |
| Module variants | 16 digital inputs |
