Description:

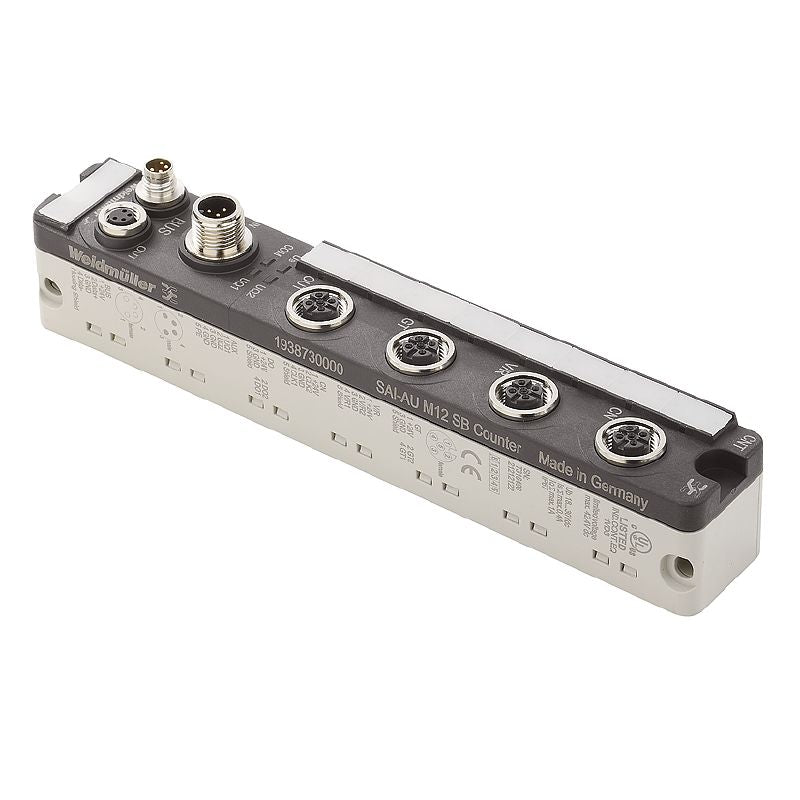

Introducing the SAI-AU M12 SB 2COUNTER, a versatile device ideal for connecting Subbus systems through various interfaces This unit features one 4-pole M8 plug and one 4-pole M8 female connector, alongside four 5-pole M12 female connectors for I/O connections It meets RoHS standards and holds UL certification, ensuring safety and quality with file number E141197 Perfect for enhancing your connectivity solutions!.
Features and Benefits:
•RoHS compliant with exemptions.
•CE certified.
•IP67 protection degree.
•Reverse polarity protection.
•Housing made from Pocan and PBT.
•Flammability rating of UL 94 5VA.
Specifications:
| Height | 32 mm |
| Width | 30 mm |
| Length | 180 mm |
| Storage temperature | -25 °C...85 °C |
| Operating temperature | 0 °C...60 °C |
| Supply voltage | 24 V |
| Contact load per PIN | max. 4 A |
| Limits | 18 V DC ... 30 V DC |
| Max. total current module | 8 A |
| Diagnosis indication (Digital inputs) | red |
| Diagnosis indication (Digital outputs) | red |
