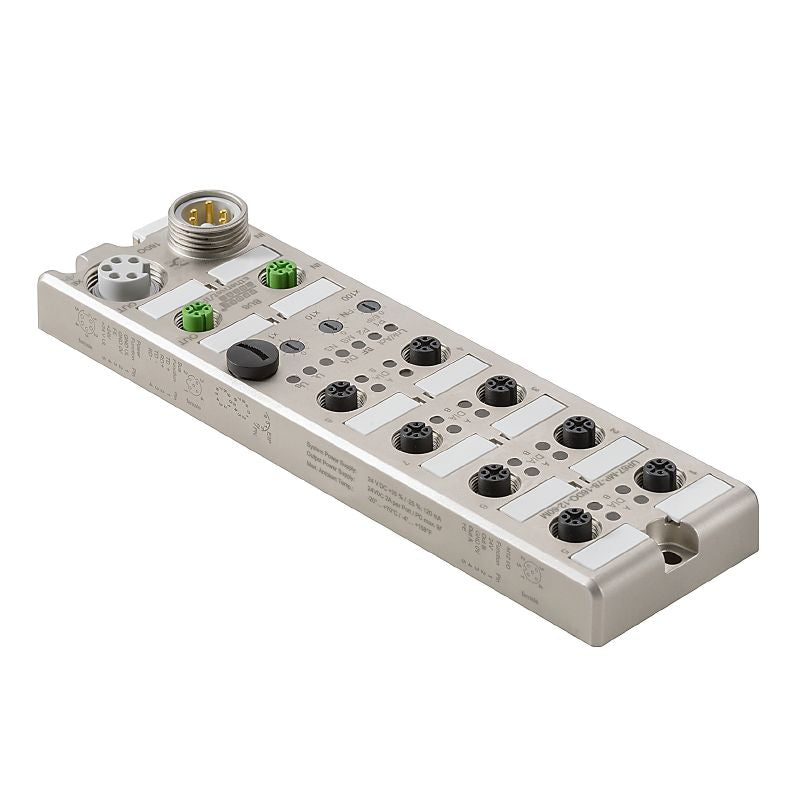

2426310000 - UR67-MP Sensor-Actuator Distributor, IP67 for Industrial Automation
2426310000 - UR67-MP Sensor-Actuator Distributor, IP67 for Industrial Automation
SKU: SKU: 2426310000 Download PDF
- 2426310000 - UR67-MP Sensor-Actuator Distributor, IP67 for Industrial Automation
- 2426310000 - UR67-MP Sensor-Actuator Distributor, IP67 for Industrial Automation
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the UR67-MP-78-16DO-12-60M, a cutting-edge active distributor for sensor-actuator applications in industrial automation This module supports a wide range of communication protocols, including PROFINET V23, EtherNet/IP, and EtherCAT, ensuring seamless integration into your systems Constructed to thrive in demanding environments, it comes with an IP67 protection rating, offering reliable performance and connectivity where you need it most.
Features and Benefits:
•Compliant with RoHS with an exemption.
•Has a diagnostic display per channel via LED indicators.
•Includes short-circuit, overload, and reverse polarity protection.
•Digital outputs with a maximum current-carrying capacity of 2 A per output.
•IP67 rated protection degree for dust and water resistance.
Specifications:
| Height | 17.3 mm |
| Width | 59.6 mm |
| Supply Voltage | 24 V DC |
| Power Consumption | 100 mA typical |
| Module Variants | 16 digital outputs |
| Connections | 1x M12 female 4-pole (BUS-IN and BUS-OUT), 8 x M12 socket 5-pole (I/O connections), 1x 7/8" plug and socket 5-pole (AUX-IN and AUX-OUT) |
| Max Total Current Outputs | 9 A (12 A see manual) |
| Digital Outputs | Status indicator per channel via LED |
| Protection Degree | IP67 |
| UL File Number | E141197 |
| Max Output Voltage | 2 V |
| Operating Voltage | 24 V |
| RoHS Exemption | 6c |
| REACH SVHC | Lead 7439-92-1 |
