Description:

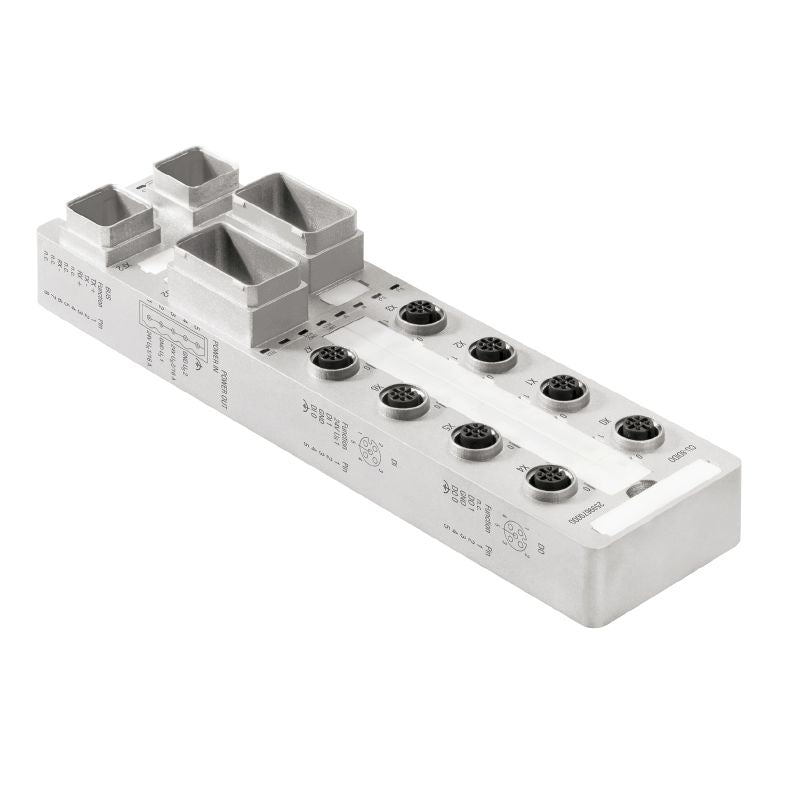

Introducing the UR67-PN-V14-CU-8DIDO-12, a reliable active distributor tailored for sensor-actuator applications With IP67 protection rating, this device meets the stringent PROFINET V23 standards, ensuring dependable performance in diverse conditions It boasts eight M12 socket interfaces with 5-pole connections, alongside a V14 PushPull RJ45 port for efficient fieldbus connectivity Operating with a supply voltage of 24V, this unit is encased in a sturdy zinc diecast housing, providing resilience and longevity for various operational environments.
Features and Benefits:
•Compliant with RoHS and REACH regulations.
•Compatible with sensor connections for 2-wire and 3-wire systems.
•Includes adjustable input filter with delay.
•Overload protection and short-circuit proof capabilities.
•IP67 rated for dust and water resistance.
Specifications:
| Height | 43 mm |
| Width | 60 mm |
| Length | 225 mm |
| Environmental Compliance | Compliant with exemption |
| Supply voltage limits | 18 V DC ... 30 V DC |
| Max. total current module | 150 mA |
| Operating voltage | 24 V |
| Protection degree | IP67 |
| Flammability rating | UL 94 |
| Number of digital inputs | 8 |
| Number of digital outputs | 8 |
| Input voltage (high) | > 11 V |
| Input voltage (low) | < 5 V |
| Max. current-carrying capacity per output signal | 2 A |
| Total current outputs | 2 A per channel, 16 A per module |
| Reverse polarity protection | Yes |
| Housing material | Zinc diecast |
