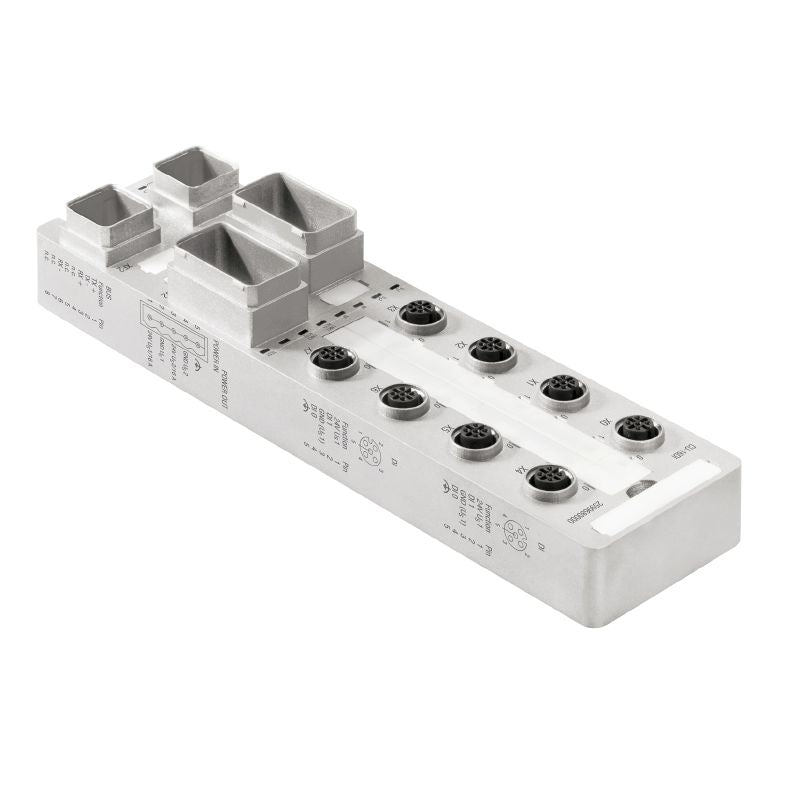

2599680000 - IP67 PROFINET Active Distributor with 16 Digital Inputs
2599680000 - IP67 PROFINET Active Distributor with 16 Digital Inputs
SKU: SKU: 2599680000 Download PDF
- 2599680000 - IP67 PROFINET Active Distributor with 16 Digital Inputs
- 2599680000 - IP67 PROFINET Active Distributor with 16 Digital Inputs
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the u-remote IP67 sensor-actuator active distributor, expertly crafted for a variety of automation needs This robust distributor supports the PROFINET V23 protocol and features 16 digital inputs, making it ideal for use in demanding environments It meets RoHS compliance with certain exemptions and boasts a UL File Number of E141197, certifying its safety and reliability for industrial applications.
Trust this dependable solution to enhance your automation processes.
Features and Benefits:
•Compliant with RoHS and cULus regulations.
•Protection level IP67 for use in harsh environments.
•Housing made of durable zinc diecast material.
•Adjustable input filter delay up to 20 ms.
•Reverse polarity protection for enhanced safety.
•Thermal switch-off for constant current protection.
Specifications:
| Height | 51 mm |
| Width | 60 mm |
| Length | 255 mm |
| Supply voltage | 18 V DC ... 30 V DC |
| Max. total current module | 150 mA |
| Operating voltage | 24 V |
| Digital inputs | 16 |
| Input voltage, high | > 11 V |
| Input voltage, low | < 5 V |
| Protection degree | IP67 |
| UL 94 flammability rating | UL 94 |
| Sensor supply | 500 mA |
