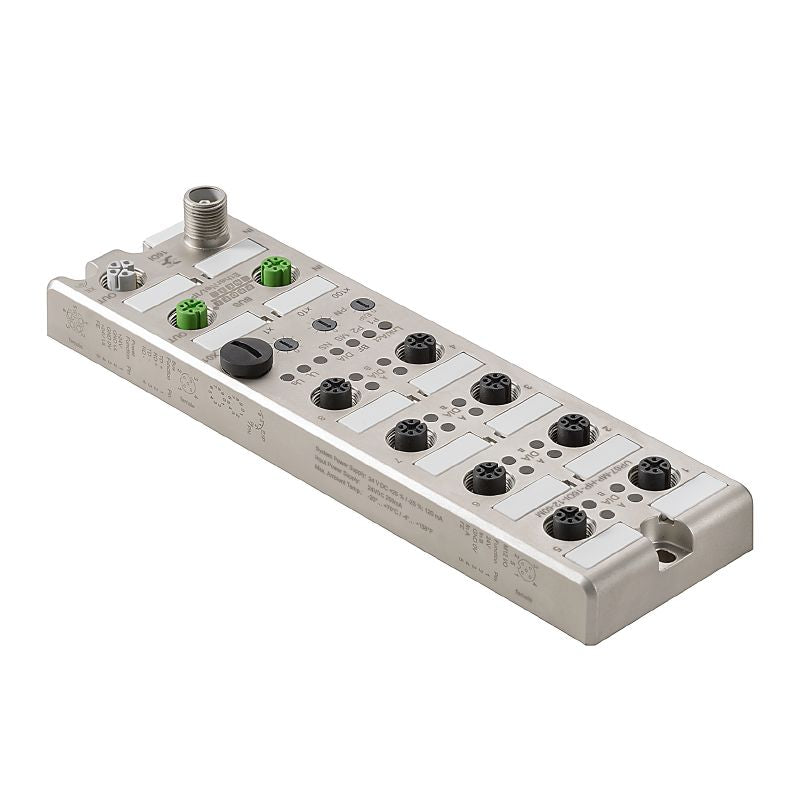

2426270000 - IP67 Active Distributor for PROFINET with Diagnostic LEDs
2426270000 - IP67 Active Distributor for PROFINET with Diagnostic LEDs
SKU: SKU: 2426270000 Download PDF
- 2426270000 - IP67 Active Distributor for PROFINET with Diagnostic LEDs
- 2426270000 - IP67 Active Distributor for PROFINET with Diagnostic LEDs
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the u-remote IP67, an advanced sensor-actuator active distributor engineered specifically for PROFINET V23 applications Built to endure harsh industrial conditions, this device meets RoHS standards and is equipped with essential protections against short circuits, overloads, and reverse polarity Additionally, it features LED diagnostic indicators for easy monitoring and adheres to digital input specifications as outlined in IEC 61131-2, ensuring seamless and reliable performance in demanding environments.
Features and Benefits:
•Protection rating of IP67 for water and dust resistance.
•Housing made from durable zinc diecast material.
•Compliant with RoHS exemption 6c.
•Includes status indicators per channel via LED.
•Diagnostic displays available per channel.
Specifications:
| UL File Number | E141197 |
| Supply voltage | 24 V |
| Power consumption | 100 mA typical |
| Height | 51 mm |
| Width | 60 mm |
| Length | 255 mm |
| Digital inputs | Type 1 in acc. with IEC 61131-2 |
| Input current, high | Type 1 in acc. with IEC 61131-2 |
| Input voltage, high | > 11 V |
| Input voltage, low | < 5 V |
| Protection degree | IP67 |
| Reverse polarity protection | Yes |
| Short-circuit protection | Yes |
| Overload protection | Yes |
