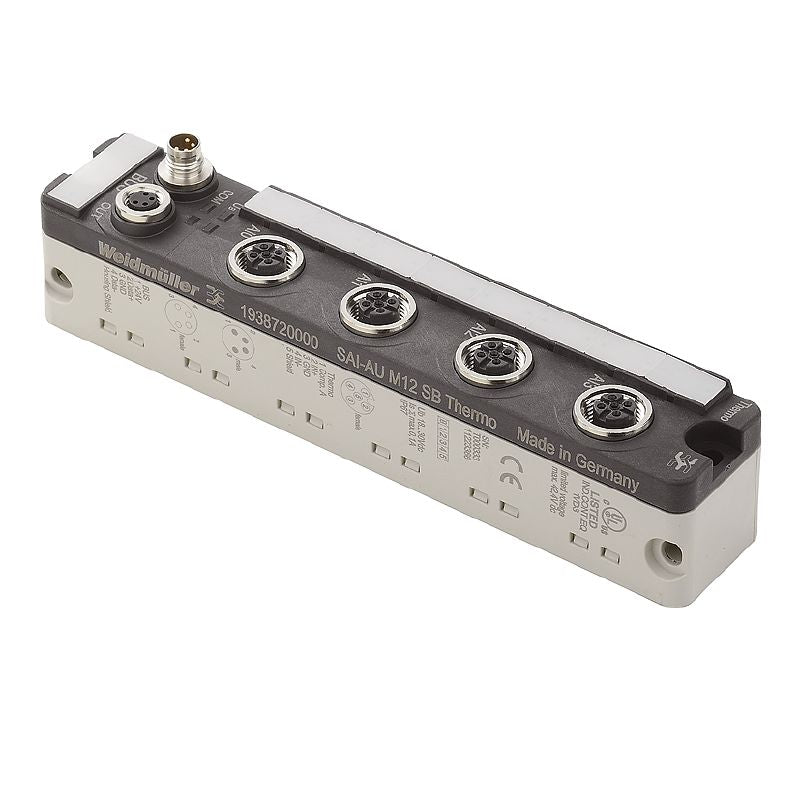

1938720000 - RoHS Compliant M12 SB 4THERMO Device, 155mm x 30mm x 32mm

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAI-AU M12 SB 4THERMO, a cutting-edge active subbus device that meets RoHS compliance standards Certified with UL file number E141197, this device guarantees dependable performance With dimensions of 155 mm in length, 30 mm in width, and 32 mm in height, it is compact yet powerful It operates efficiently within an ambient temperature range of 0 °C to 60 °C, while it can be safely stored in conditions from -25 °C to 85 °C.

This device is equipped with multiple connectivity options, including one M8 plug, one M8 female, and four A-coded M12 female connections Additionally, it boasts a CE certification and an IP67 rating for waterproof protection The power supply requirements range from 18 V DC to 30 V DC, making it an excellent choice for various applications.

Features and Benefits:

•Configured digital input filter.

•Reverse polarity protection.

•Made from Pocan and PBT materials.

•Protection rating of IP67.

•UL 94 flammability rated as 5VA.

•CE marking.

Specifications:
