Description:

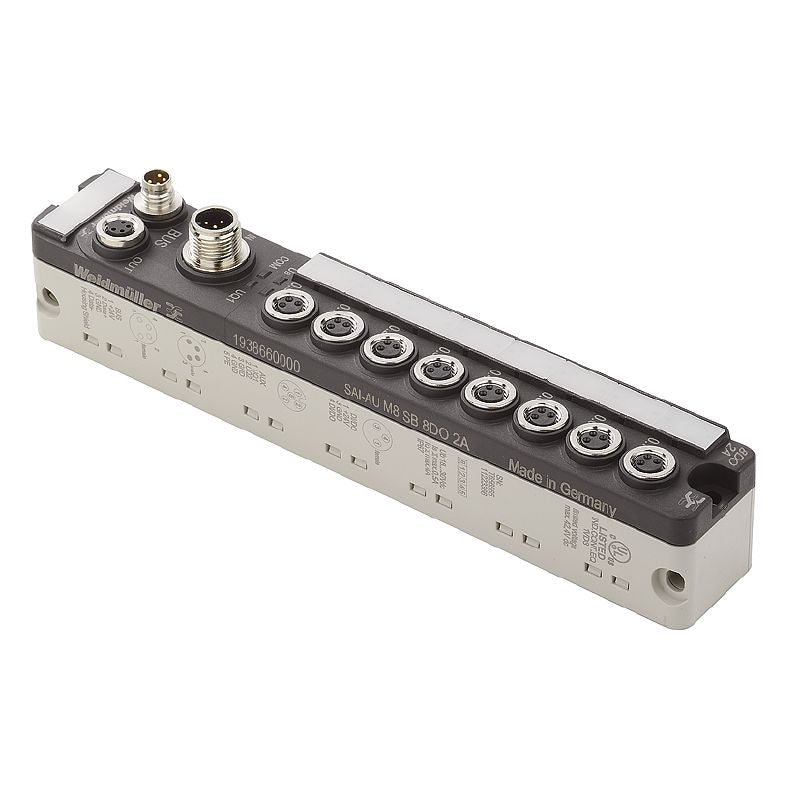

Introducing the SAI-AU M8 SB 8DO 2A active sub-bus module, a versatile and certified component suitable for a variety of applications With a UL certificate (E141197) and compliance with RoHS standards, it ensures safety and reliability This module supports a wide operational temperature range from 0 °C to 60 °C, while its storage capabilities extend from -25 °C to 85 °C
Equipped with multiple I/O connections, the module features adjustable input filters along with input voltage ratings that adhere to EN 61131-2 standards.
Built to last, it includes short-circuit protection and is constructed from durable Pocan and PBT materials, making it a robust choice for your needs.
Features and Benefits:
•Complies with RoHS exemptions.
•CE certified and cULus Listed.
•IP67 protection rating for dust and water resistance.
•Short-circuit proof design with error messaging.
•Supports a supply voltage range of 18 V DC to 30 V DC.
Specifications:
| Height | 32 mm |
| Width | 30 mm |
| Length | 180 mm |
| Net weight | 290 g |
| Operating temperature | 0 °C...60 °C |
| Storage temperature | -25 °C...85 °C |
| Digital inputs | {'High input current': '2 mA to 15 mA', 'Low input current': '< 15 mA', 'Permitted input voltage': '-30 V to +30 V', 'Input voltage high': '>15 V', 'Input voltage low': '<5 V'} |
| Digital outputs | {'Max current per output': '2 A', 'Max total current': '4 A', 'Output voltage high': 'Supply voltage less 0.7 V DC', 'Output voltage low': '0 V DC'} |
| Housing material | Pocan, PBT |
| Protection degree | IP67 |
| Reverse polarity protection | Yes |
