Description:

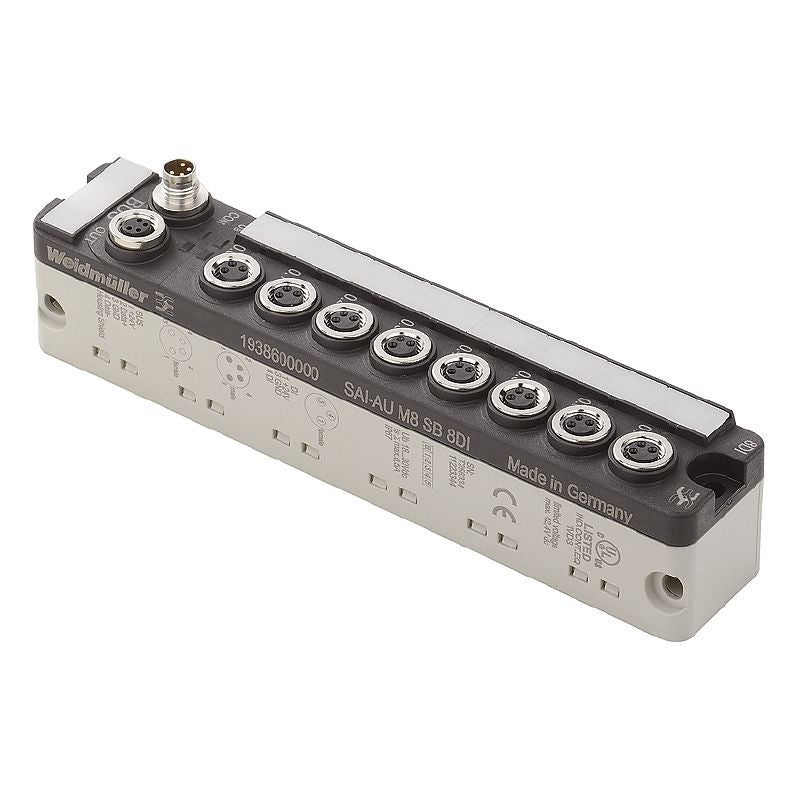

Introducing the SAI-AU M8 SB 8DI, a dynamic component from the SAI Active series This device is equipped with an M8 4-pole A-coded plug for seamless input connections and an M8 4-pole A-coded female connector for output It boasts digital inputs and outputs, complete with a red indication for diagnostics, ensuring you have the information you need at a glance Fully compliant with RoHS standards and proudly holding CE certification, this model guarantees both safety and reliability for your applications.
Features and Benefits:
•M8 plug and female connector for ease of connection.
•Digital input and output diagnosis features.
•Compliant with RoHS and CE certified.
Specifications:
| Net weight | 265 g |
| Permitted input voltage | -30 V to +30 V (protected against polarity reversal) |
| Input current, high | 2 mA to 15 mA in accordance with EN 61131-2 Type 1 |
| Input current, low | < 15 mA in accordance with EN 61131-2 Type 1 |
| Connection to Subbus (SUB-IN) | 1 x M8 plug 4-pole A-coded |
| Connection to Subbus (SUB-OUT) | 1 x M8 female 4-pole A-coded |
| Certificate | CE, cULus |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption | 6c |
| REACH SVHC | Lead 7439-92-1, Potassium perfluorobutane sulfonate 29420-49-3 |
| Earth | < 200 g |
| ETIM Classifications | EC001599 |
| ECLASS | 27-24-26-04 |
