1938700000 - IP67 Rated SAI-AU Device, RoHS Compliant, -25°C to 85°C
1938700000 - IP67 Rated SAI-AU Device, RoHS Compliant, -25°C to 85°C
SKU: SKU: 1938700000 Download PDF
- 1938700000 - IP67 Rated SAI-AU Device, RoHS Compliant, -25°C to 85°C
- 1938700000 - IP67 Rated SAI-AU Device, RoHS Compliant, -25°C to 85°C
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

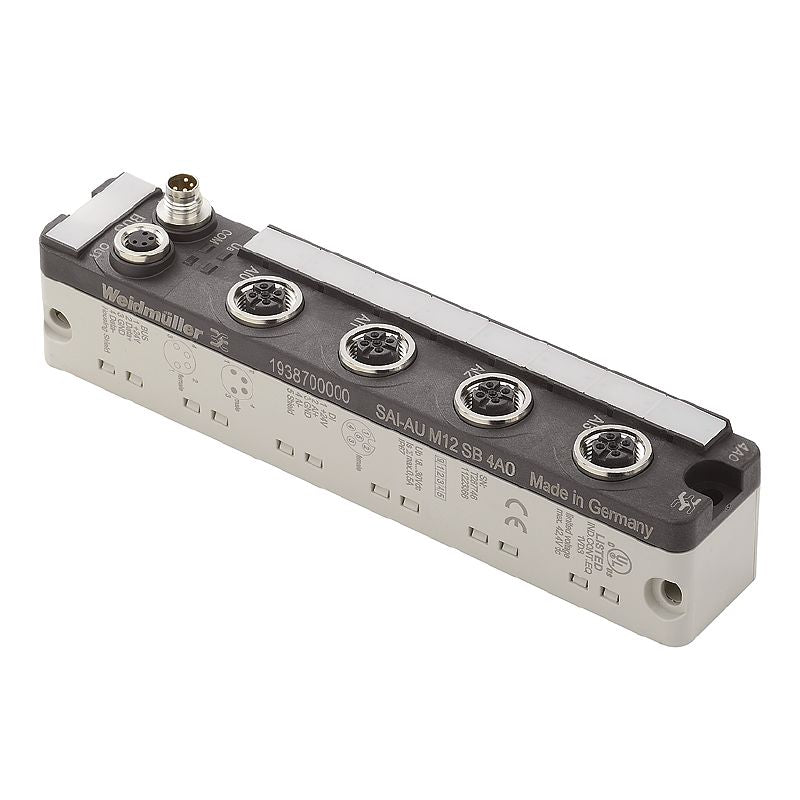

Introducing the SAI-AU M12 SB 4AO, a highly dependable device built for superior performance This model boasts RoHS compliance and carries a UL certification (E141197), ensuring it meets strict safety and environmental standards Engineered to withstand temperatures from -25 °C to 85 °C during storage and 0 °C to 60 °C during operation, it is suited for various applications
The unit features multiple connection options and provides advanced diagnostic indicators to facilitate easy monitoring.
With an IP67 rating, it's designed to thrive in harsh conditions, making it an excellent choice for demanding environments.
Features and Benefits:
•Compliant with RoHS and REACH regulations.
•IP67 protection degree for enhanced durability.
•Reverse polarity protection included.
•CE and cULus certified.
•Housing made from Pocan - PBT for improved performance.
Specifications:
| Height | 32 mm |
| Width | 30 mm |
| Length | 155 mm |
| Net weight | 273 g |
| Operating voltage | 24 V |
| Supply voltage Limits | 18 V DC ... 30 V DC |
| Connection to Subbus (SUB-IN) | 1 x M8 plug 4-pole A-coded |
| Connection to Subbus (SUB-OUT) | 1 x M8 female 4-pole A-coded |
| I/O connections | 4 x M12 female 5-pole A-coded |
| Digital inputs Diagnosis indication | red |
| Digital outputs Diagnosis indication | red |
| UL 94 flammability rating | 5VA |
