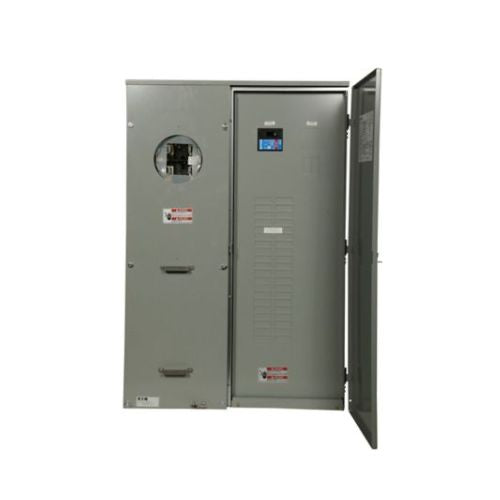

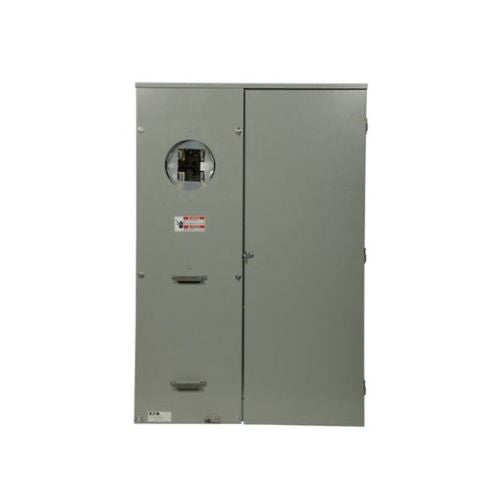

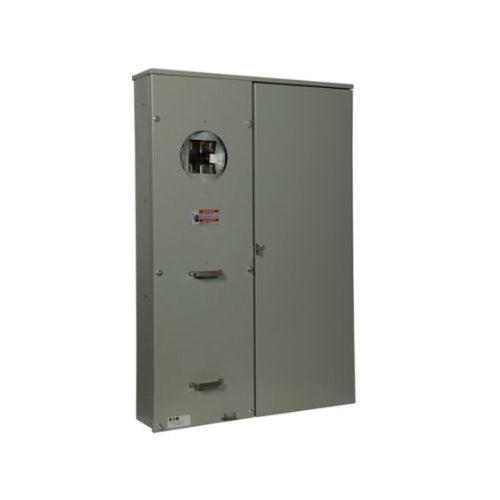

400A 120/240V Ringless House Panel With Lever Bypass HP816P400BSL
400A 120/240V Ringless House Panel With Lever Bypass HP816P400BSL
SKU: SKU: HP816P400BSL Download PDF
Couldn't load pickup availability
About :
A House Panel is essential for managing and protecting a home's electrical system, making it crucial for safety and functionality. serves as the central point where the incoming electricity from the utility company is distributed to various circuits throughout the house.
Also Known As :
House Panel, Electrical Panel, Breaker Panel, Distribution Board, Fuse Box
Specification :
| Type | House panel |
| Interrupt rating |
10 kAIC 22 kAIC |
| Enclosure | NEMA 3R |
| Secondary circuit breaker | BW/BWH |
| Amperage Rating |
400 A
|
| Line |
Lug landings for compression, lugs not included
|
| Voltage rating |
120/240 V
|
| Number of spaces | 8 |
| Number of sockets | 1 |
| Number of circuits | 16 |
| Product Type |
House Panel
|
| Product Length/Depth |
6 in
|
| Product Height |
44 in
|
| Product Width |
29.75 in
|
| Compliances |
EUSERC Approved
|
| Certifications |
UL Listed
|
| Mounting |
Surface
|
| Security |
Ring less
|
| Used with |
Type BR breakers
|
| Bypass |
Lever
|
| Bus material |
Aluminum
|
| Feed type |
Top/bottom
|
| Main circuit breaker |
CSR2150
|
Features :
• These are the most visible parts of the house panel. They control and protect the electrical circuits by automatically interrupting power when they detect overcurrent, short circuits, or other electrical problems.
• This breaker controls the power supply to all of the circuits in the panel. It can shut off power to the entire house.
• Connected to the grounding wire, it provides a safe path for electricity to be carried back to the ground outside.
