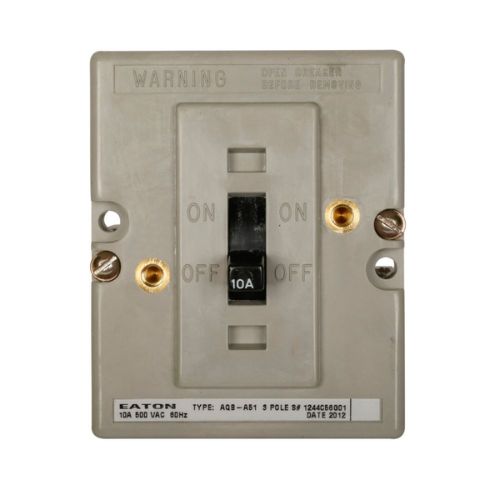

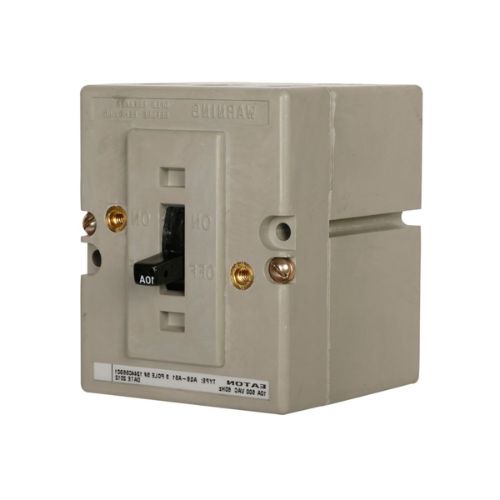

Molded Case Circuit Breaker Non Interchangeable Thermal Magnetic Trip 1244C56G08
Molded Case Circuit Breaker Non Interchangeable Thermal Magnetic Trip 1244C56G08
SKU: SKU: 1244C56G08
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Note : Image for reference only.The actual product may differ
About:
• The Molded Case Circuit Breaker with Non-Interchangeable Thermal Magnetic Trip provides reliable protection for electrical circuits by combining both thermal and magnetic tripping mechanisms.
• The thermal trip element guards against overloads by responding to heat, while the magnetic trip element offers instantaneous protection against short circuits. Its non-interchangeable trip feature ensures fixed trip settings, offering consistent and dependable protection for specific applications.
• Ideal for use in industrial, commercial, and residential installations, this MCCB is designed for durability, performance, and safety. It meets stringent safety standards, providing robust protection and minimizing potential electrical hazards.
Also Known As:
MCCB with Fixed Thermal Magnetic Trip, Fixed Trip Molded Case Circuit Breaker, Thermal Magnetic MCCB, Non-Adjustable Thermal Magnetic Breaker, Fixed Trip MCCB, Molded Case Breaker.
Specification:
| Product Type | Fixed Trip Molded Case Circuit Breaker |
| Category | Circuit Breaker |
| Number of Poles | Three-pole |
| Voltage Rating | 500 Vac |
| Length/depth |
4.6 In |
| Height | 3.6 In |
| Width | 4.5 In |
| Part No. |
1244C56G08 |
Features:
• Provides both thermal protection against overload and magnetic protection against short circuits for comprehensive safeguarding.
• The trip unit is permanently integrated, ensuring a fixed response to overloads and short circuits.
• Available in various current ratings, typically ranging from low to high amperage to suit different circuit protection requirements.
• Molded case provides a compact, rugged housing that is resistant to environmental impacts, ideal for industrial and commercial applications.
• Allows quick identification of a tripped condition for easy reset and troubleshooting.
• Conforms to industry standards for safety and reliability.
• Designed for long service life with minimal maintenance requirements.
