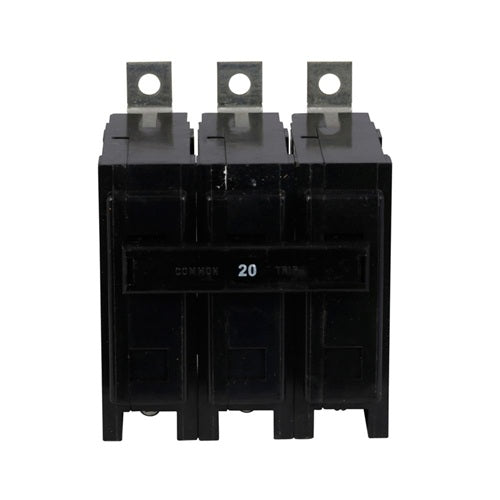

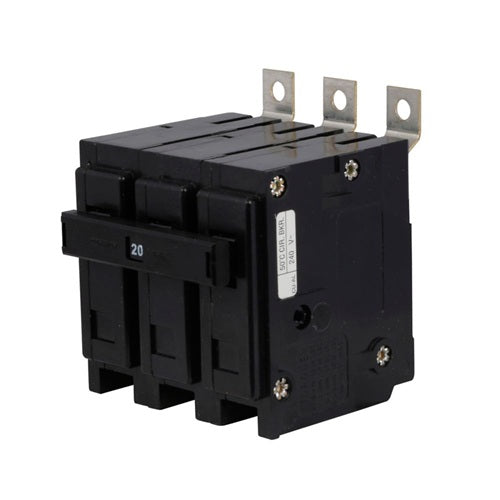

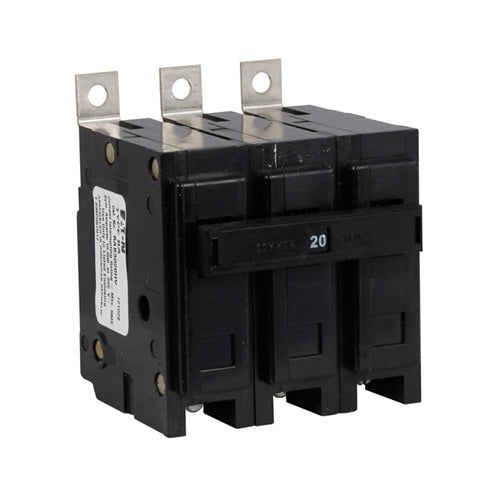

3 Pole Quicklag Industrial Thermal-Magnetic Circuit Breaker BAB3020H
3 Pole Quicklag Industrial Thermal-Magnetic Circuit Breaker BAB3020H
SKU: SKU: BAB3020H Download PDF
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
About :
Eaton Quicklag Industrial Thermal-Magnetic Circuit Breaker, 20A, BAB type, 10 kAIC, Bolt-on mounting, Three-pole, Non-Interchangeable, 240V.
Specifications :
| Amps | 20 Amp |
|---|---|
| Breaker Interrupt Rating 1 | 10KA 240VAC |
| Breaker Line Side Term Method | Bolt-On |
| Breaker Load Side Term Method | Lugs |
| Category | Circuit Breakers |
| Circuit Breaker Type | MCB |
| Frame | BAB |
| Height | 2.5 |
| In Stock | Yes |
| Length | 3 |
| Manufacturer | Eaton |
| Number of Poles | 3 Pole |
| Product Description | 240V, 20Amp, 3-Pole |
| Trip Type | Thermal Magnetic |
| UNSPSC | 39121603 |
| UPC | 786679303207 |
| Volts | 240V |
| Width | 3 |
| Product Type |
Circuit Breaker
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
HACR rated
|
| Special features |
Bolt-on mounting
|
Features :
• 3-Pole Configuration:
-
- Designed to protect three-phase electrical systems, typically found in industrial machinery and other heavy-duty equipment.
-
Thermal-Magnetic Trip Unit:
- Thermal Protection: Provides protection against prolonged overloads by sensing temperature rise due to excessive current. The thermal element reacts to the heat generated by the overload.
- Magnetic Protection: Offers instantaneous protection against short circuits by using a magnetic coil that responds to very high currents. This ensures the breaker trips quickly in case of a short circuit.
-
Current Rating:
- Rated for a maximum of 20 amps per pole, allowing a total of 60 amps for the entire 3-pole breaker.
-
Interrupting Capacity:
- The BAB3020H typically has an interrupting capacity of 10kA (kiloamperes) at 240V, which means it can safely interrupt fault currents up to that level without causing further damage.
-
Voltage Rating:
- It is designed for use in 480Y/277V, 240V, 208Y/120V systems, suitable for industrial and commercial applications.
