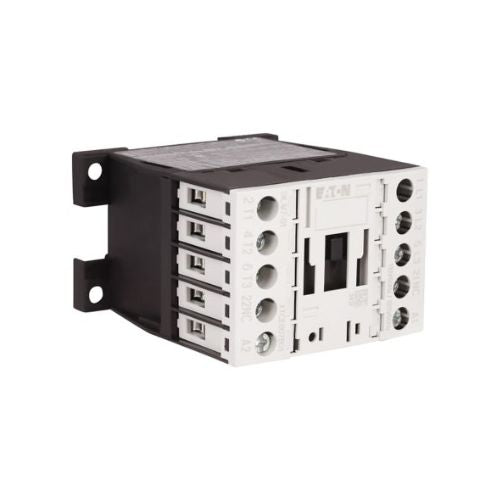

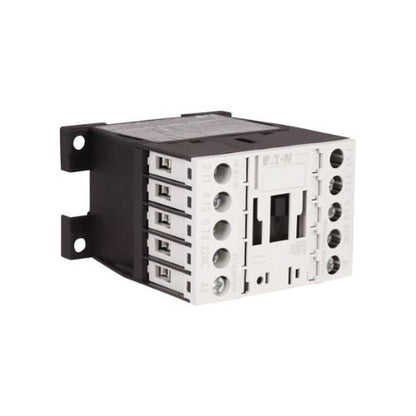

15A 220/240Vac Three-Pole IEC contactor XTCE015B10B
15A 220/240Vac Three-Pole IEC contactor XTCE015B10B
SKU: SKU: XTCE015B10B Download PDF
Couldn't load pickup availability
About :
A contactor is an electrical device designed to remotely switch an electrical power circuit. It is typically used where a large amount of power needs to be switched, especially in commercial and industrial applications.
Also Known As :
Contactor, Motor Starter, Electric Contactor, Magnetic Contactor, Power Contactor
Specification :
| Amperage Rating |
15A
|
| Number of poles | Three-pole |
| Type | Full voltage non-reversing contactor |
| Coil | 220-240 Vac, 50/60 Hz |
| HP rating - max |
1, 2, 3/ 5, 5, 10, 10 hp (1/3PH @115,200,230/200,230,460,575 V)
|
| Product Length/Depth |
3 in
|
| Product Height | 2 in |
| Product Width | 3 in |
| Product Type |
Contactor
|
| Compliances |
CE Marked
RoHS Compliant |
| Certifications |
UL Listed
CSA Certified IEC 60947 EN 60947 |
| Catalog Notes |
Screw terminals (6-65A); 5 mm (80-150A); no lugs (185-2000A)
|
| Frequency rating |
50-60 Hz
|
| Terminals |
Screw terminals
|
| Coil voltage |
220-240 Vac, 50/60 Hz
|
| Contact configuration |
1 NO
|
| Continuous ampere rating |
15 A
|
| Series |
XT IEC
|
| Operation |
Non-reversing
|
Features :
• Pole Configuration: Contactors can come in several pole configurations, such as single-pole, double-pole, and three-pole, depending on the application.
• Enclosure Types: They can be enclosed in a variety of casings to protect against dust, moisture, and mechanical damage.
• Auxiliary Contacts: Often, contactors include auxiliary contacts that can be used for signaling or interlocking purposes.
