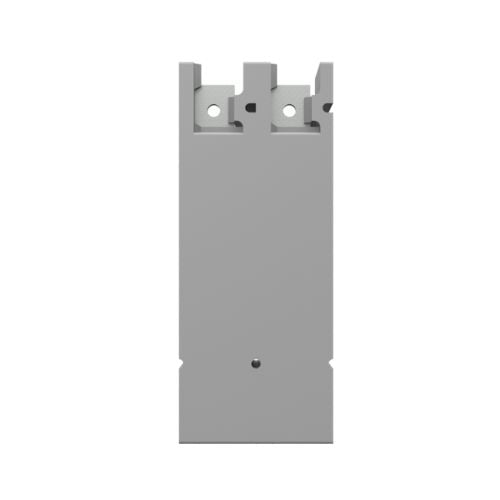

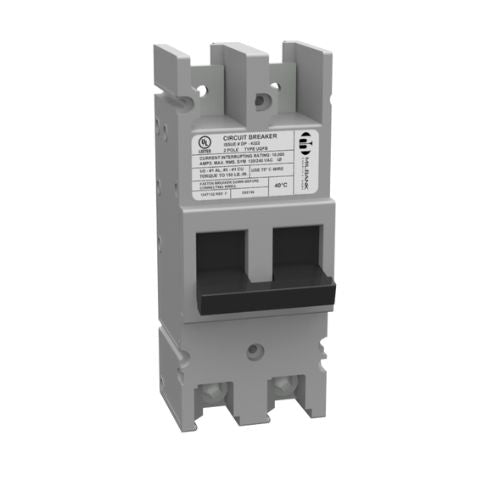

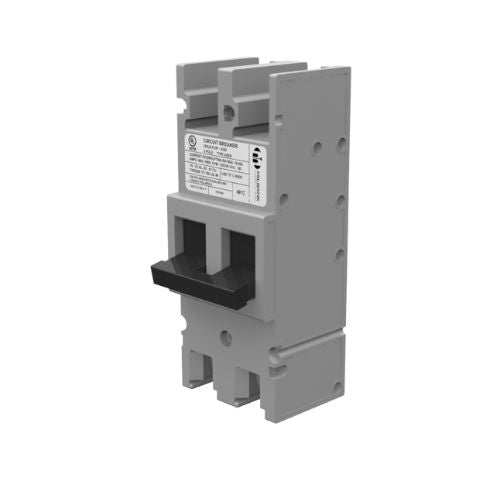

2 Poles 240Vac 200A Circuit Breaker UQFB-200-X1
2 Poles 240Vac 200A Circuit Breaker UQFB-200-X1
SKU: SKU: UQFB-200-X1 Download PDF
Couldn't load pickup availability
About :
A circuit breaker is an electrical safety device designed to protect an electrical circuit from damage caused by excess current, typically resulting from an overload or a short circuit. Its basic function is to interrupt current flow after a fault is detected.
Also Known As :
Circuit Breaker, Electrical Breaker, Breaker, Safety Switch, Disconnect Switch, Overcurrent Breaker
Specification :
| Type | Current Interrupting Device |
| Special Features | Line Side Threaded Tangs |
| Application | Metering Accessory |
| Voltage Rating | 240 Volts Alternating Current |
| Amperage Rating | 200 Ampere |
| Number Of Poles | 2 |
| Connection | Lug to Lug |
| Height | 7.438 IN |
| Length | 3.281 IN |
| Width | 3 IN |
| Actuator | Lever |
| Auxiliary Contacts | No Auxiliary Contacts |
| Frequency Rating | 60 Hertz |
| Interrupt Rating | 10,000 Ampere Interrupting Capacity |
| Material | Non Metallic |
| Phase | 1 Phase |
| Operating Temperature | 40 Degrees Celsius |
| Standard | UL Listed |
| Trip Type | Thermal Magnetic |
Features :
• Circuit breakers are used in residential, commercial, and industrial environments. They range from small devices that protect household appliances to large switchgear designed to protect high voltage circuits feeding an entire city.
• Breakers are rated for different voltages, currents, and interrupting capacities. Choosing the correct rating is crucial for the safety and efficiency of the electrical system they protect.
• Regular maintenance of circuit breakers is essential to ensure they operate efficiently and safely. This can include visual inspections, mechanical tests, and electrical tests.
