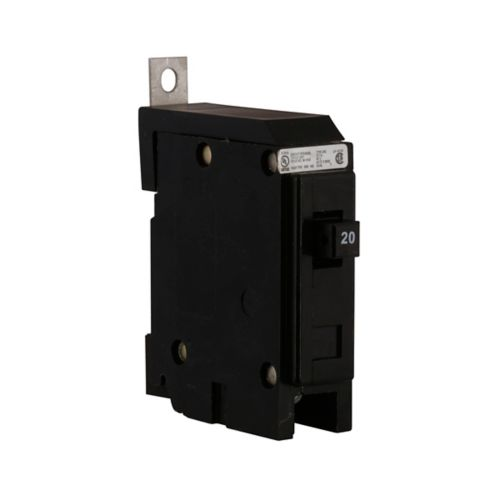

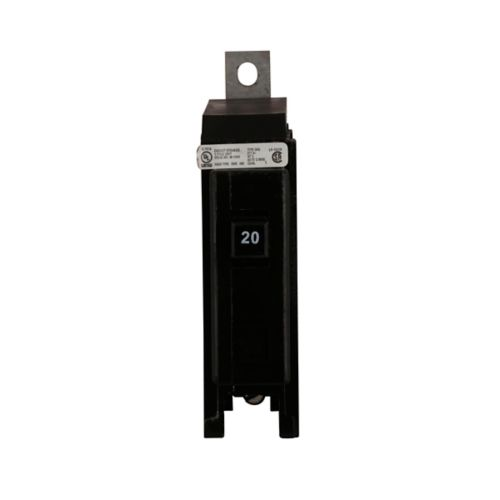

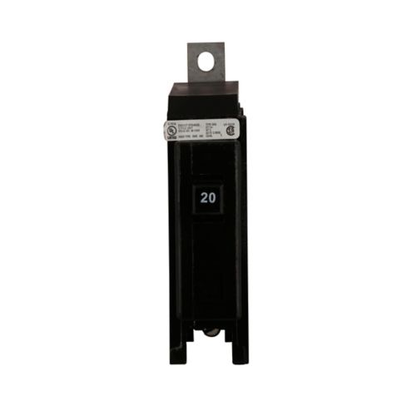

20A Single Pole 277V Molded Case Circuit Breaker GHQ1020
20A Single Pole 277V Molded Case Circuit Breaker GHQ1020
SKU: SKU: GHQ1020 Download PDF
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
About :
A circuit breaker is an electrical safety device designed to protect an electrical circuit from damage caused by excess current, typically resulting from an overload or a short circuit. Its basic function is to interrupt current flow after a fault is detected.
Also Known As :
Circuit Breaker, Electrical Breaker, Breaker, Safety Switch, Disconnect Switch, Overcurrent Breaker
Specification :
| Amperage Rating |
20 A
|
| Voltage rating |
277V
|
| Trip Type |
Non-Interchangeable
|
| Frame size | GDB |
| Interrupt rating | 14 kAIC |
| Number of poles | Single-pole |
| Type |
Thermal-magnetic circuit breaker
|
| Product Length/Depth |
2.9 in
|
| Product Height |
2.9 in
|
| Product Width |
1 in
|
| Certifications |
UL 489
|
Features :
• Circuit breakers are used in residential, commercial, and industrial environments. They range from small devices that protect household appliances to large switchgear designed to protect high voltage circuits feeding an entire city.
• Breakers are rated for different voltages, currents, and interrupting capacities. Choosing the correct rating is crucial for the safety and efficiency of the electrical system they protect.
• Regular maintenance of circuit breakers is essential to ensure they operate efficiently and safely. This can include visual inspections, mechanical tests, and electrical tests.
