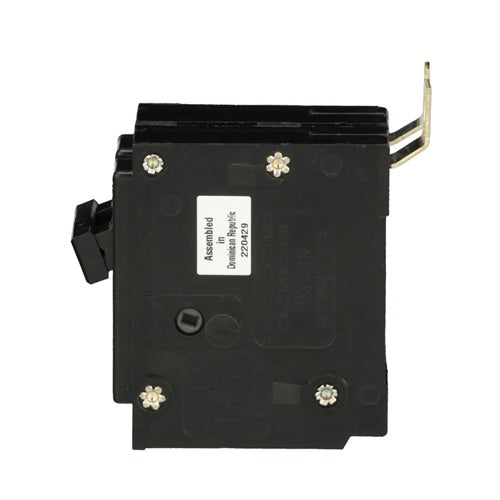

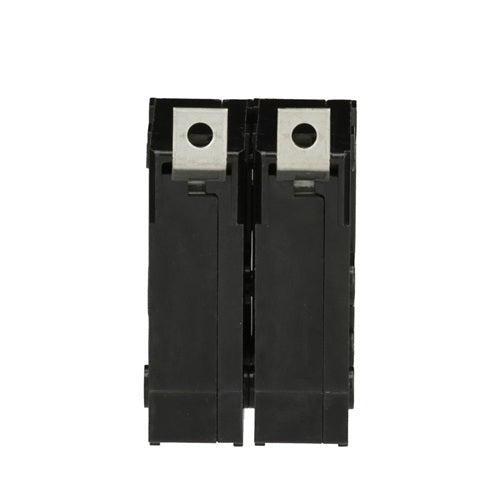

2 Pole Thermal Magnetic Circuit Breaker Quicklag BAB2015
2 Pole Thermal Magnetic Circuit Breaker Quicklag BAB2015
SKU: SKU: BAB2015 Download PDF
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
About :
Eaton BAB thermal magnetic circuit breaker,Quicklag industrial thermal-magnetic circuit breaker,Bolt-on mounting, Switching neutral,15 A,10 kAIC,Two-pole,120/240 V,Non-Interchangeable,Q7,BAB.
Specifications :
| Type | Type BAB, QuickLag | Number of Poles | 2 |
| Interrupt Rating | 10 kA | Amperage Rating | 15 A |
| Voltage Rating | 120/240 VAC | Terminal Connection | Extended Tang Line, Box Lug |
| Mounting Type | Bolt-On | Phase | 1 |
| Frequency Rating | 50/60 Hz | Conductor Size | 14-4 AWG Aluminum/Copper |
| Trip Type | Non-Interchangeable, Thermal Magnetic | Temperature Rating | 0 - 40 °C Ambient |
| Dimensions | 3.8 in L x 2.1 in W x 4.8 in H | For Use With | Eaton, Cutler-Hammer, Bryant, Westinghouse, Challenger, and Novaline Panel Boards |
| Standards | UL Listed, CSA Certified, | Application | For Industrial Use |
| Product Type |
Circuit Breaker
|
Quantity |
7
|
| Certifications |
UL Listed
CSA Certified |
Special features |
|
Features :
• Current Rating: The BAB2015 is rated for 15 amps, making it suitable for circuits requiring that level of protection.
• Voltage Rating: It is designed for a 240V AC system, making it appropriate for residential or light commercial applications.
• Quicklag Technology: The Quicklag series is known for its reliable, quick response times, ensuring that the breaker trips instantly in the case of a fault.
• Manual Reset: After tripping, the breaker can be manually reset, allowing the system to be restored to normal operation after addressing the underlying issue.
• Compact and Easy to Install: Its compact design and straightforward mounting system make it easy to install in standard breaker panels.
• Durable Construction: Built to last, this breaker is designed to withstand harsh electrical environments and provide long-term reliability.
