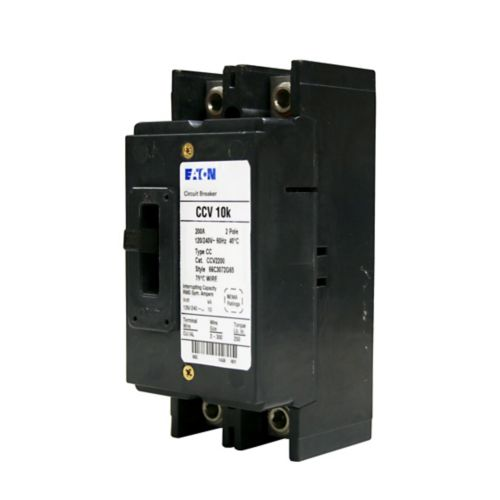

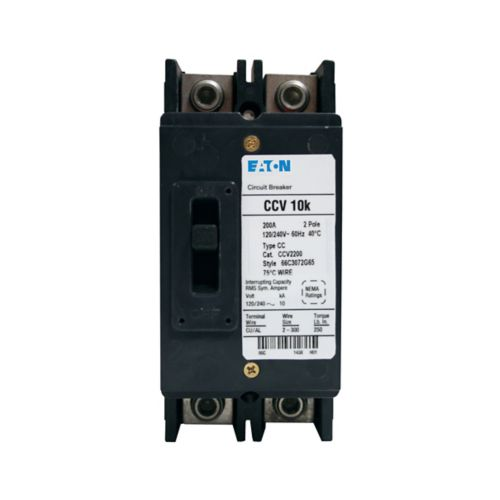

200A Two Pole 120-240V Type CCV Tenant Main Circuit Breaker CCV2200
200A Two Pole 120-240V Type CCV Tenant Main Circuit Breaker CCV2200
SKU: SKU: CCV2200 Download PDF
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
| Type | Tenant main circuit breaker |
| Amperage Rating | 200 A |
| Voltage rating | 120/240 V |
| Circuit breaker frame type | CCV |
| Interrupt rating | 10 kAIC |
| Main circuit breaker | CCV |
| Wire size | #2/0 AWG-300 kcmil Cu/Al |
| Number of poles | Two-pole |
| Product Length/Depth | 8 in |
| Product Height | 5.5 in |
| Product Width | 4.5 in |
About :
The Main Circuit Breaker is a critical safety device designed to protect electrical systems from overloads, short circuits, and potential fire hazards. The Main Circuit Breaker ensures stable power distribution, enhances electrical safety, and complies with national and international electrical standards. Ideal for residential, commercial, and industrial applications, it is an essential component in any modern electrical infrastructure.
Also Known As :
Circuit Breaker, Electrical Breaker, Power Breaker, Breaker Switch, Trip Switch, Load Break Switch, Thermal Breaker
Applications :
• Circuit breakers safeguard household appliances by preventing excessive current that could damage sensitive electronics or devices.
• Circuit breakers are deployed in commercial electrical panels to protect the power supply and ensure the safety of employees and electrical equipment.
• Used to protect transformers, cables, and other distribution equipment in the electric utility sector.
