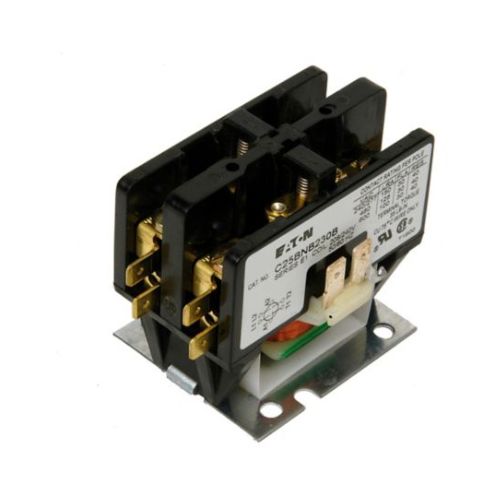

30A 110/120Vac Two-Pole Definite Purpose Contactor C25BNB230A
30A 110/120Vac Two-Pole Definite Purpose Contactor C25BNB230A
SKU: SKU: C25BNB230A Download PDF
Couldn't load pickup availability
About :
A contactor is an electrical device designed to remotely switch an electrical power circuit. It is typically used where a large amount of power needs to be switched, especially in commercial and industrial applications.
Also Known As :
Contactor, Motor Starter, Electric Contactor, Magnetic Contactor, Power Contactor
Specification :
| Amperage Rating |
30A
|
| Number of poles | Two-pole |
| Type | Non-reversing |
| Coil | 110-120 Vac, 50/60 Hz |
| Enclosure | Open with metal mounting plate |
| Frame size | Compact, two-pole |
| Terminals | Binding head screw and quick connect terminals (side-by-side) |
| Product Length/Depth | 2.32 in |
| Product Height | 3.19 in |
| Product Width | 1.97 in |
| Compliances |
RoHS Compliant
|
| Certifications |
UL Recognized
CSA Certified |
| Product Type |
Contactor
|
| Inductive full load |
30 A
|
| Model |
Contactor
|
| Resistive load |
40 A
|
| Connection |
Quick
|
Features :
• Pole Configuration: Contactors can come in several pole configurations, such as single-pole, double-pole, and three-pole, depending on the application.
• Enclosure Types: They can be enclosed in a variety of casings to protect against dust, moisture, and mechanical damage.
• Auxiliary Contacts: Often, contactors include auxiliary contacts that can be used for signaling or interlocking purposes.
