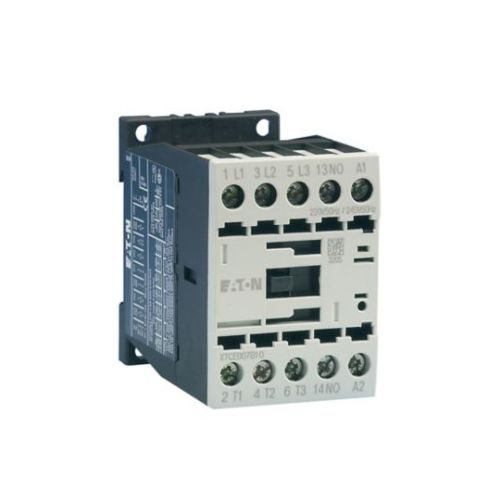

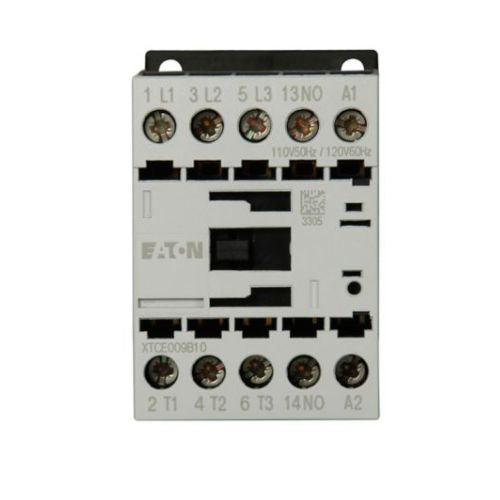

9Amp 110/120Vac Three-Pole IEC Contactor XTCE009B10A
9Amp 110/120Vac Three-Pole IEC Contactor XTCE009B10A
SKU: SKU: XTCE009B10A Download PDF
Couldn't load pickup availability
About :
A contactor is an electrical device designed to remotely switch an electrical power circuit. It is typically used where a large amount of power needs to be switched, especially in commercial and industrial applications.
Also Known As :
Contactor, Motor Starter, Electric Contactor, Magnetic Contactor, Power Contactor
Specification :
| Amperage Rating |
9A
|
| Number of poles | Three-pole |
| Type | Full voltage non-reversing contactor |
| Coil | 110-120 Vac, 50/60 Hz |
| HP rating - max |
0.5, 1, 1.25/ 3, 3, 5, 7.5 hp (1/3PH @115,200,230/200,230,460,575 V)
|
| Frame size | 45 mm |
| Terminals | Screw terminals |
| Product Height | 2 in |
| Product Type |
Contactor
|
| Compliances |
CE Marked
RoHS Compliant |
| Certifications |
UL Listed
CSA Certified IEC 60947 EN 60947 |
| Catalog Notes |
Screw terminals (6-65A); 5 mm (80-150A); no lugs (185-2000A)
|
| Frequency rating |
50-60 Hz
|
| Contact configuration |
1 NO
|
| Continuous ampere rating |
9 A
|
| Series |
XT IEC
|
| Operation |
Non-reversing
|
Features :
• Pole Configuration: Contactors can come in several pole configurations, such as single-pole, double-pole, and three-pole, depending on the application.
• Enclosure Types: They can be enclosed in a variety of casings to protect against dust, moisture, and mechanical damage.
• Auxiliary Contacts: Often, contactors include auxiliary contacts that can be used for signaling or interlocking purposes.
