Description:

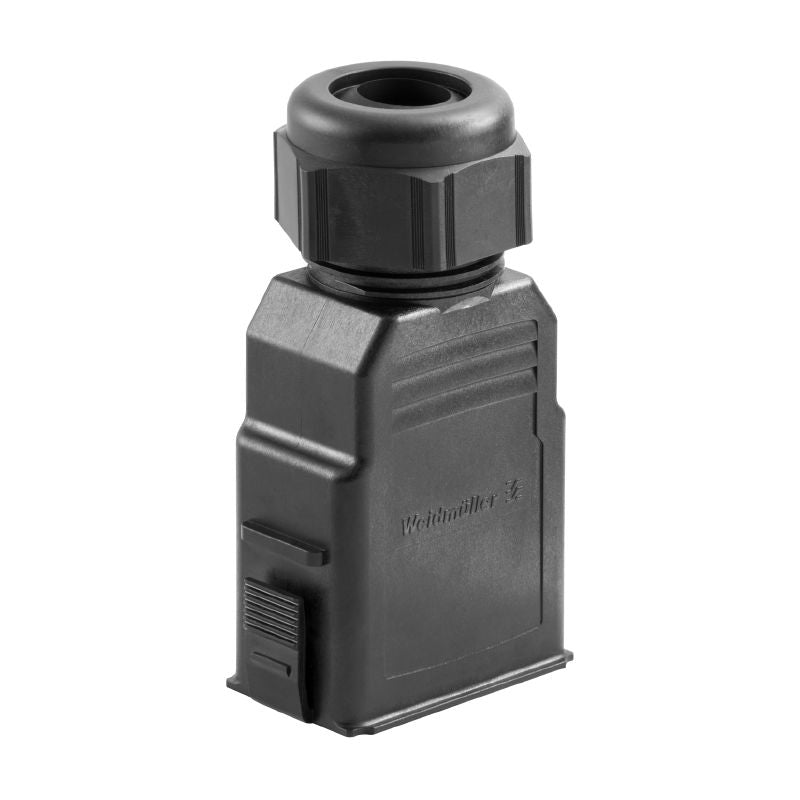

Introducing the PV PS VAPM 5P F connector, engineered for durability and versatility across a wide temperature spectrum of -40 °C to 105 °C This sturdy connector features five poles and utilizes a reliable screw connection mechanism, ensuring a secure fit Crafted from polycarbonate, it showcases a sleek black hue and adheres to RoHS standards, with no restricted materials With an impressive insulation resistance of at least 1000 MΩ, it supports a current rating of 60 A, along with a maximum voltage rating of 600 V.
Furthermore, this connector offers protection ratings of IP65 when securely closed and IP2x in its open state, making it suitable for various applications.
Features and Benefits:
•Compliant with RoHS standards without exemptions.
•High insulation resistance of ≥ 1000 MΩ.
•Rated for a maximum current of 60 A.
•Suitable for a wide operating temperature range.
•Made from durable polycarbonate material.
Specifications:
| Conductor cross-section, max. | 16 mm² |
| Conductor cross-section, min. | 0.2 mm² |
| Pollution severity | 3 |
| Protection degree | IP65 in closed state, IP2x open |
| Rated impulse voltage (DIN EN 61984) | 6 kV |
| Rated current | 60 A |
| Rated voltage | 600 V |
