1530690000 - RoHS Certified Female Connector for Photovoltaics, 11.6g (Pack of 100)
1530690000 - RoHS Certified Female Connector for Photovoltaics, 11.6g (Pack of 100)
SKU: SKU: 1530690000 Download PDF
- 1530690000 - RoHS Certified Female Connector for Photovoltaics, 11.6g (Pack of 100)
- 1530690000 - RoHS Certified Female Connector for Photovoltaics, 11.6g (Pack of 100)
Couldn't load pickup availability
Description:

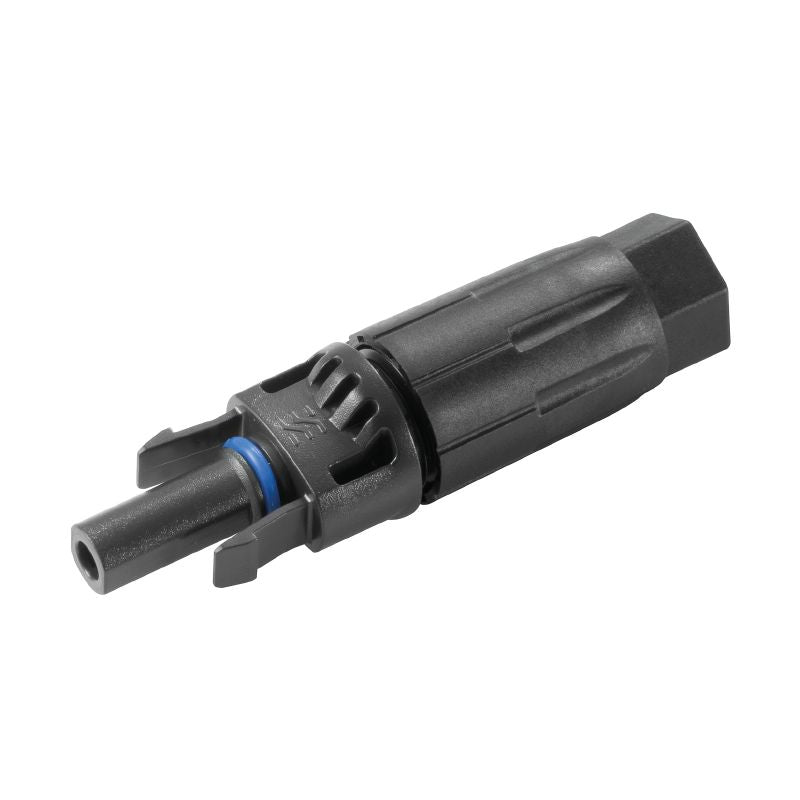

Introducing the BUGH WM4 C BT, a high-performance female plug-in connector specifically engineered for photovoltaic applications This connector is fully compliant with RoHS standards without any exemptions, ensuring it contains no Substances of Very High Concern (SVHC) exceeding 01% by weight Weighing in at just 116 grams, it boasts multiple certifications, including TÜV Rheinland (IEC 62852), verifying its reliability and safety.
It also adheres to the cable specification standard 2 Pfg1169/0807 and follows the compliance guidelines of EN 50618:2014 Perfect for enhancing your solar energy installations!.
Features and Benefits:
•Compliant with RoHS.
•Rated current of 35 A.
•Rated voltage of 1500 V DC (IEC).
•Protection degree rating of IP65, IP67, IP2x open.
•External thread of M 16.
•Pollution severity rating of 2.
•Designed for use in photovoltaic applications.
Specifications:
| Conductor cross-section, max. | 6 mm² |
| Conductor cross-section, min. | 4 mm² |
| Outer cable diameter, max. | 7 mm |
| Outer cable diameter, min. | 5.5 mm |
| Guarantee time interval | 2 years |
| ETIM classification | EC002928 |
| ECLASS versions | 22-57-92-03, 27-44-01-07, 22-57-02-92 |
