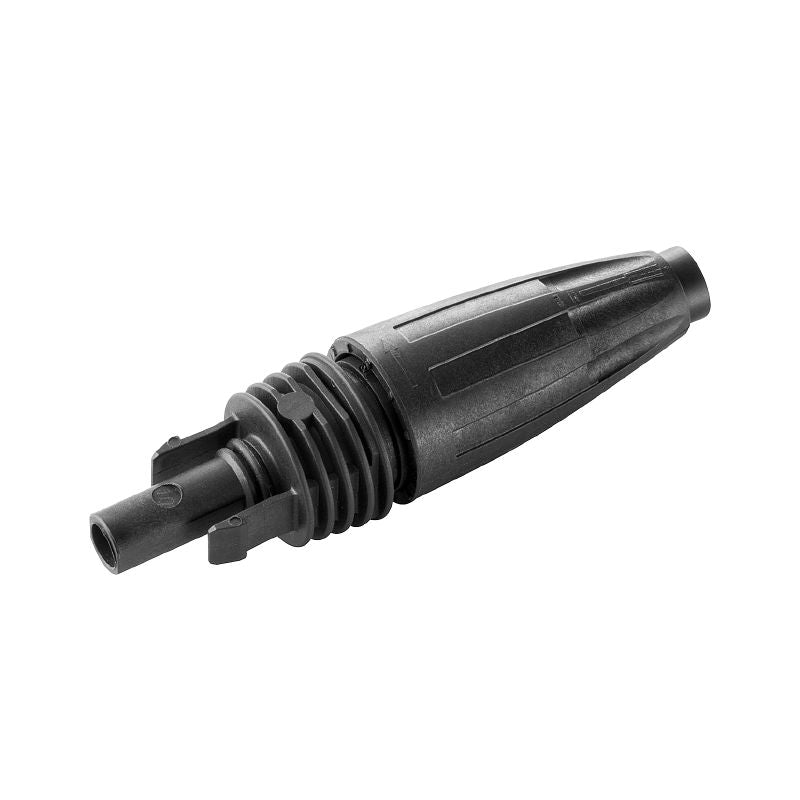

1303460000 - 50-Pack PV-Stick+ for Photovoltaics, RoHS Compliant (Pack of 50)
1303460000 - 50-Pack PV-Stick+ for Photovoltaics, RoHS Compliant (Pack of 50)
SKU: SKU: 1303460000 Download PDF
- 1303460000 - 50-Pack PV-Stick+ for Photovoltaics, RoHS Compliant (Pack of 50)
- 1303460000 - 50-Pack PV-Stick+ for Photovoltaics, RoHS Compliant (Pack of 50)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the PV-STICK+ VPE50, a top-notch component tailored for photovoltaic applications featuring plug-in connectors This eco-friendly product adheres to RoHS regulations, ensuring no exemptions affect its compliance Sold in a convenient pack of 50, each unit weighs 15323 grams and is engineered to function efficiently across a wide temperature range of -40 °C to 85 °C.
Features and Benefits:
•RoHS compliant.
•Environmental compliance with no SVHC above 0.1 wt%.
•Cradle to gate carbon footprint of 0.145 kg CO2eq.
•Protection degrees of IP65 and IP68 (1 m / 60 min).
•Rated current of 30 A.
•Rated voltage of 1500 V DC.
•Designed for use in photovoltaic systems.
Specifications:
| Conductor cross-section, max. | 6 mm² |
| Conductor cross-section, min. | 4 mm² |
| Outer cable diameter, max. | 7.6 mm |
| Outer cable diameter, min. | 5.4 mm |
| Pollution severity | 3 (2 within the sealed area) |
| Approval | TÜV Rheinland (IEC 62852) |
| Cable type | 2 Pfg1169/08.07 |
| EN standard | EN 50618:2014 |
| IEC standard | IEC 62930:2017 |
