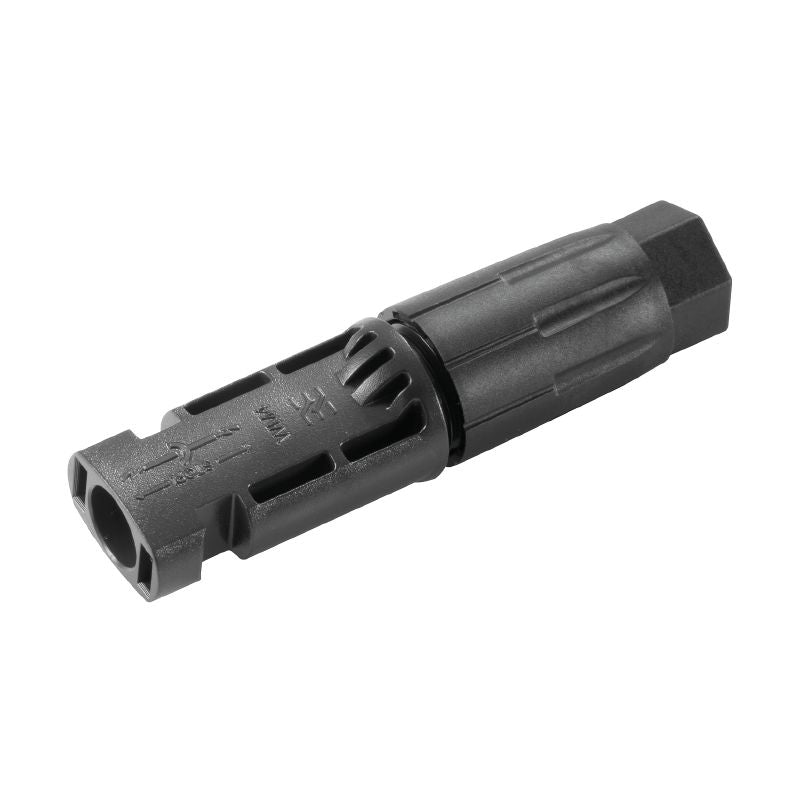

1530700000 - Reliable Male Plug-in Connector for Photovoltaic Use (Pack of 100)
1530700000 - Reliable Male Plug-in Connector for Photovoltaic Use (Pack of 100)
SKU: SKU: 1530700000 Download PDF
- 1530700000 - Reliable Male Plug-in Connector for Photovoltaic Use (Pack of 100)
- 1530700000 - Reliable Male Plug-in Connector for Photovoltaic Use (Pack of 100)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the SFGH WM4 C BT, a premium male plug-in connector tailored for photovoltaic systems Weighing in at just 138 grams, this connector adheres to RoHS regulations without exemptions, demonstrating a commitment to environmental standards It has received TÜV Rheinland approval under the IEC 62852 guidelines, guaranteeing dependable performance for your solar applications.
Features and Benefits:
•RoHS compliant.
•Rated current is 35 A.
•Rated voltage of 1500 V DC.
•Pollution severity rated at level 2.
•Protection degree of IP65 and IP67.
•Product classifiable under ETIM and ECLASS standards.
•Photovoltaic systems.
Specifications:
| Conductor cross-section, max. | 6 mm² |
| Conductor cross-section, min. | 4 mm² |
| External thread | M 16 |
| Outer cable diameter, max. | 7 mm |
| Outer cable diameter, min. | 5.5 mm |
| Guarantee | 2 years |
| General ordering data | Photovoltaics, Plug-in connector, male |
