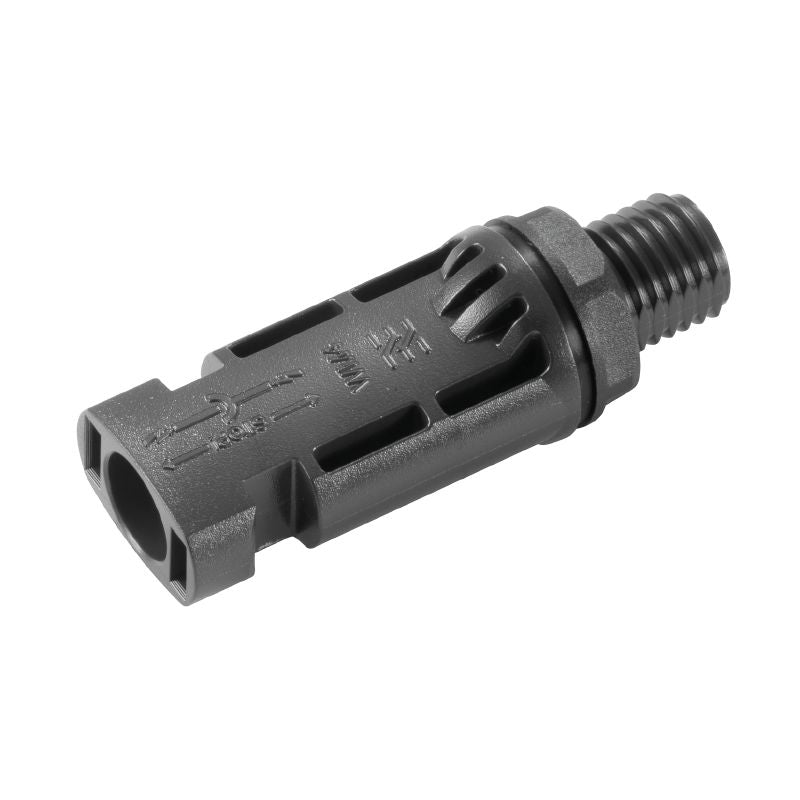

1530640000 - Lightweight RoHS Compliant Male Plug for PV Applications (Pack of 100)
1530640000 - Lightweight RoHS Compliant Male Plug for PV Applications (Pack of 100)
SKU: SKU: 1530640000 Download PDF
- 1530640000 - Lightweight RoHS Compliant Male Plug for PV Applications (Pack of 100)
- 1530640000 - Lightweight RoHS Compliant Male Plug for PV Applications (Pack of 100)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

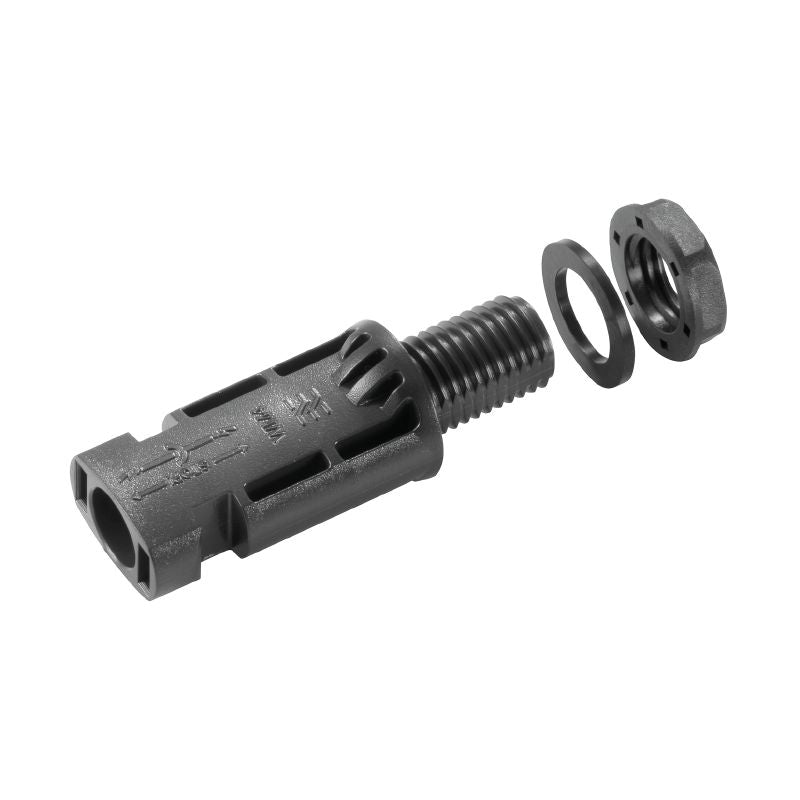

Introducing the SFGH BOX WM4 C BT, a male plug-in connection device specifically engineered for photovoltaic systems This product adheres to RoHS standards, ensuring environmentally friendly usage Identified by product number 1530640000 and GTIN 4050118335460, it weighs just 77 grams, making it lightweight and easy to handle Capable of operating in a wide temperature spectrum from -40 °C to 85 °C, this versatile connection device is suitable for multiple environments, ensuring reliable performance in varying conditions.
Features and Benefits:
•RoHS compliant without exemption.
•Easy installation with external thread M12.
•Rated for a maximum voltage of 1500 V DC.
•Rated current capacity of 35 A.
•Robust protection rated to IP65 and IP67 for waterproof qualities.
•Photovoltaic systems.
Specifications:
| Conductor cross-section, max | 6 mm² |
| Conductor cross-section, min | 4 mm² |
| Outer cable diameter, max | 7 mm |
| Outer cable diameter, min | 5.5 mm |
| Pollution severity | 2 |
| Protection degree | IP65, IP67, IP2x open |
| Continuous operating temp., min | -40 °C |
| Continuous operating temp., max | 85 °C |
| Approvals | TÜV Rheinland (IEC 62852) |
