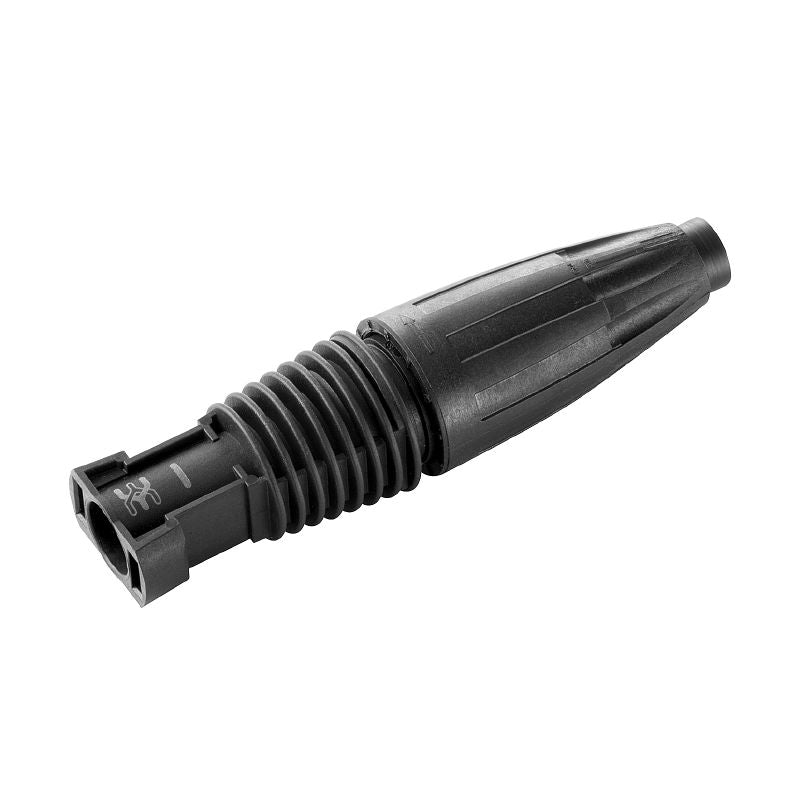

1303500000 - Reliable PV-STICK Connector for Solar Applications (VPE50) (Pack of 50)
1303500000 - Reliable PV-STICK Connector for Solar Applications (VPE50) (Pack of 50)
SKU: SKU: 1303500000 Download PDF
- 1303500000 - Reliable PV-STICK Connector for Solar Applications (VPE50) (Pack of 50)
- 1303500000 - Reliable PV-STICK Connector for Solar Applications (VPE50) (Pack of 50)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the PV-STICK - VPE50, an essential photovoltaic plug-in connector tailored for dependable performance in solar energy projects This connector is fully RoHS compliant, ensuring it meets essential safety and environmental standards Built to endure extreme temperatures ranging from -40 °C to 85 °C, it guarantees reliability in various conditions Each pack includes 50 units, with a total weight of 16.
2 grams, making it a practical choice for your solar applications.
Features and Benefits:
•RoHS compliant without exemptions.
•Designed according to IEC 62852.
•Rated for a maximum continuous current of 30 A.
•Rated voltage of 1500 V DC (IEC).
•Protection degree of IP65 and IP68 (1 m / 60 min).
Specifications:
| Conductor cross-section, max. | 6 mm² |
| Conductor cross-section, min. | 4 mm² |
| Outer cable diameter, max. | 7.6 mm |
| Outer cable diameter, min. | 5.4 mm |
| Pollution severity | 3 (2 within the sealed area) |
| Rated current | 30 A |
| Rated voltage | 1500 V DC (IEC) |
| Continuous operating temp., min. | -40 °C |
| Continuous operating temp., max. | 85 °C |
| Product Carbon Footprint | 0.125 kg CO2eq. |
| Approvals | TÜV Rheinland (IEC 62852) |
