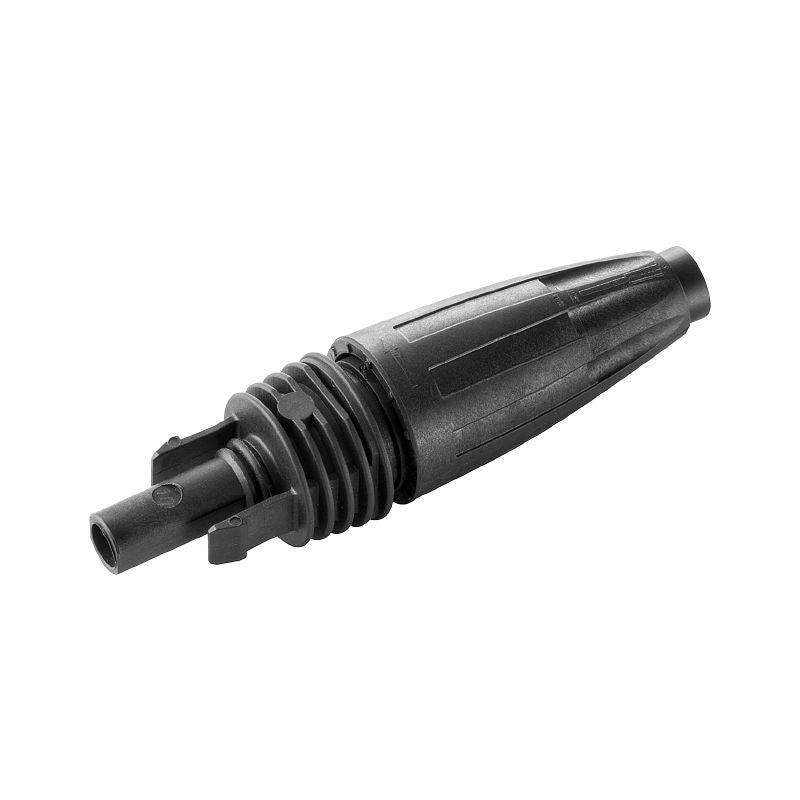

1303450000 - RoHS-Compliant PV-STICK+ Connector for Solar Systems (Pack of 10)
1303450000 - RoHS-Compliant PV-STICK+ Connector for Solar Systems (Pack of 10)
SKU: SKU: 1303450000 Download PDF
- 1303450000 - RoHS-Compliant PV-STICK+ Connector for Solar Systems (Pack of 10)
- 1303450000 - RoHS-Compliant PV-STICK+ Connector for Solar Systems (Pack of 10)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Experience reliable connectivity in your solar energy systems with the PV-STICK+ VPE10 connector Engineered for plug-in compatibility, this connector meets RoHS regulations, making it an excellent choice for a wide range of photovoltaic applications Ideal for enhancing your solar setups while ensuring compliance with environmental standards.
Features and Benefits:
•Compliant without exemption.
•Rated current of 30 A.
•Rated voltage up to 1500 V DC.
•Protection degree of IP65, IP68 (1 m / 60 min), and IP2x open.
•Constructed with a pollution severity of 3, and 2 within the sealed area.
Specifications:
| Continuous operating temp., min. | -40 °C |
| Continuous operating temp., max. | 85 °C |
| Conductor cross-section, max. | 6 mm² |
| Conductor cross-section, min. | 4 mm² |
| Outer cable diameter, max. | 7.6 mm |
| Outer cable diameter, min. | 5.4 mm |
| Product Carbon Footprint | 0.145 kg CO2eq. |
| Approvals | TÜV Rheinland (IEC 62852) |
