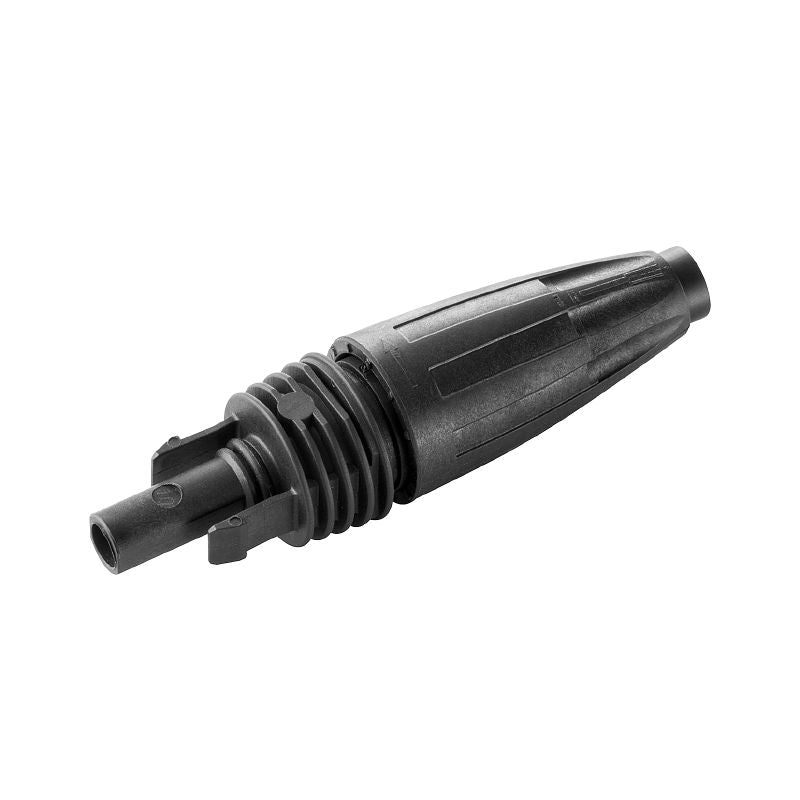

1303470000 - RoHS PV-STICK+ Connector, 4-6 mm² for Photovoltaic Use (Pack of 200)
1303470000 - RoHS PV-STICK+ Connector, 4-6 mm² for Photovoltaic Use (Pack of 200)
SKU: SKU: 1303470000 Download PDF
- 1303470000 - RoHS PV-STICK+ Connector, 4-6 mm² for Photovoltaic Use (Pack of 200)
- 1303470000 - RoHS PV-STICK+ Connector, 4-6 mm² for Photovoltaic Use (Pack of 200)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the PV-STICK+ VPE200, a specialized plug-in connector crafted for photovoltaic applications This connector meets RoHS guidelines and has received TÜV Rheinland certification in accordance with IEC 62852 standards It is expertly designed to accommodate cable installations with a conductor cross-section range of 4 mm² up to 6 mm² With an outer diameter measuring between 54 mm and 76 mm, this connector ensures versatile compatibility with various cable sizes.
Features and Benefits:
•IP65 protection for harsh environments.
•IP68 rated for submersion up to 1 meter for 60 minutes.
•Operates in a wide temperature range from -40°C to 85°C.
•Rated for a maximum current of 30 A.
•Rated voltage up to 1500 V DC.
•Photovoltaic installations.
•Plug-in connections within solar energy systems.
Specifications:
| Continuous operating temp., min. | -40 °C |
| Continuous operating temp., max. | 85 °C |
| Conductor cross-section, max. | 6 mm² |
| Conductor cross-section, min. | 4 mm² |
| Outer cable diameter, max. | 7.6 mm |
| Outer cable diameter, min. | 5.4 mm |
| Pollution severity | 3 (2 within the sealed area) |
| Protection degree | IP65, IP68 (1 m / 60 min), IP2x open |
| Rated current | 30 A |
| Rated voltage | 1500 V DC (IEC) |
| Product Carbon Footprint | 0.145 kg CO2eq. |
