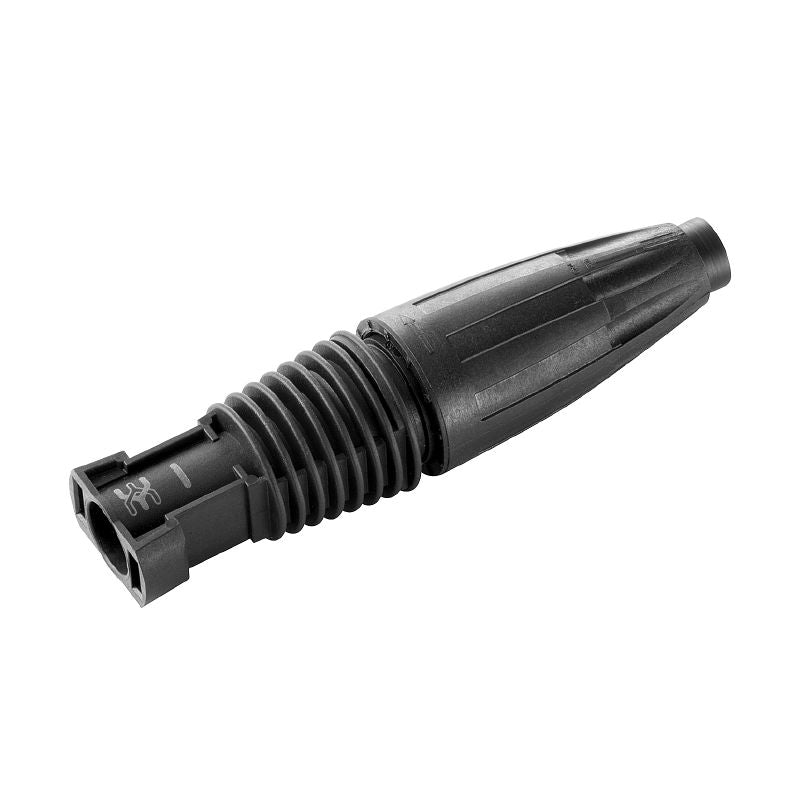

1303490000 - PV-STICK Connector for 4-6 mm² Conductors, TÜV Approved (Pack of 10)
1303490000 - PV-STICK Connector for 4-6 mm² Conductors, TÜV Approved (Pack of 10)
SKU: SKU: 1303490000 Download PDF
- 1303490000 - PV-STICK Connector for 4-6 mm² Conductors, TÜV Approved (Pack of 10)
- 1303490000 - PV-STICK Connector for 4-6 mm² Conductors, TÜV Approved (Pack of 10)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the PV-STICK-VPE10 connector, a reliable solution specially crafted for photovoltaic systems This connector meets RoHS requirements and is certified by TÜV Rheinland in accordance with IEC 62852 standards It accommodates conductor cross-sections between 4 mm² and 6 mm², with the capability to handle a maximum current of 30 A and a rated voltage of 1500 V DC, all aligned with IEC guidelines.
Perfect for enhancing your photovoltaic applications.
Features and Benefits:
•Compliant with RoHS regulations.
•Rated for a continuous operating temperature between -40 °C and 85 °C.
•Protection degree of IP65 and IP68 for resistance against dust and water.
•Pollution severity rating of 3 in the sealed area.
Specifications:
| Conductor cross-section, max. | 6 mm² |
| Conductor cross-section, min. | 4 mm² |
| Outer cable diameter, max. | 7.6 mm |
| Outer cable diameter, min. | 5.4 mm |
| Rated current | 30 A |
| Rated voltage | 1500 V DC (IEC) |
| Continuous operating temp., min. | -40 °C |
| Continuous operating temp., max. | 85 °C |
| Pollution severity | 3 (2 within the sealed area) |
| Protection degree | IP65, IP68 (1 m / 60 min), IP2x open |
| Product Carbon Footprint | 0.125 kg CO2eq. |
