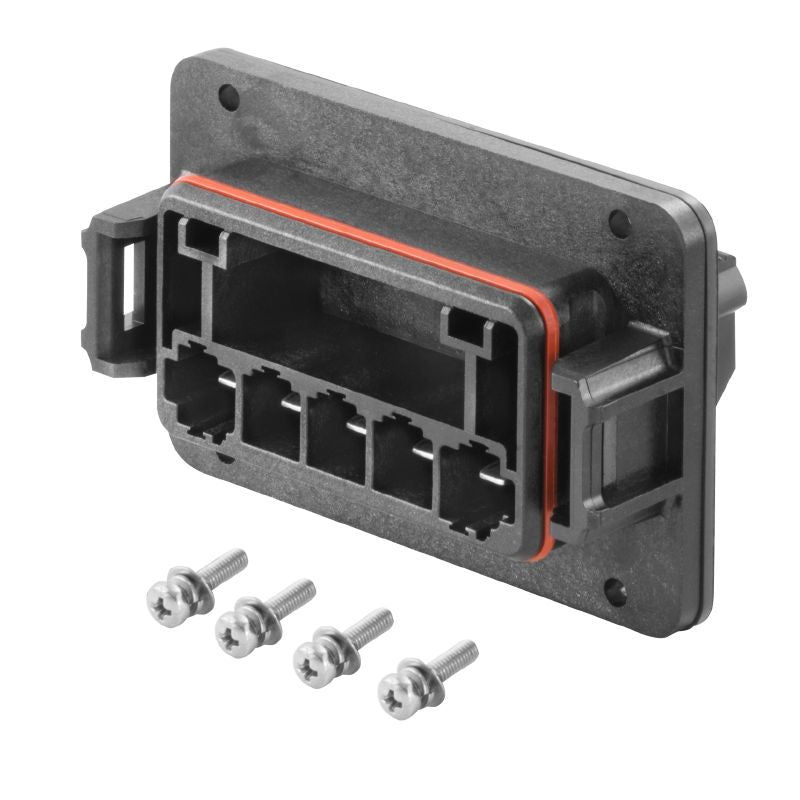

2920100000 - Durable Plastic 5P M Component with RoHS Compliance
2920100000 - Durable Plastic 5P M Component with RoHS Compliance
SKU: SKU: 2920100000 Download PDF
- 2920100000 - Durable Plastic 5P M Component with RoHS Compliance
- 2920100000 - Durable Plastic 5P M Component with RoHS Compliance
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the PV BSS VAPM 5P M, engineered for optimal performance and efficiency This product boasts strong certifications, adhering fully to RoHS standards for safety and reliability Constructed from high-quality plastic (PA), it promises both durability and longevity, making it a dependable choice for your needs.
Features and Benefits:
•Compliant with RoHS without exemption.
•PUSH IN connection type.
•High insulation resistance of ≥ 10⁸ Ω.
•Pollution severity level of 3.
•Rated impulse voltage of 6 kV.
•Protection degrees include IP65 in closed state, IP2x open, IP67, and IP68.
Specifications:
| Conductor cross-section, max. | 10 mm² |
| Conductor cross-section, min. | 0.5 mm² |
| Rated current | 60 A |
| Rated voltage | 600 V |
| Continuous operating temp., min. | -40 °C |
| Continuous operating temp., max. | 105 °C |
