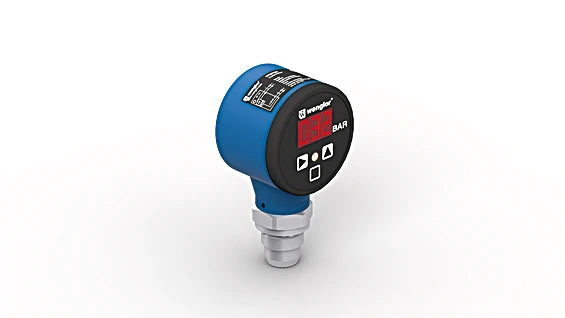

FFMP076 - UniBar Pressure Sensor - -1 to 600 Bar with Display

FFMP076 - UniBar Pressure Sensor - -1 to 600 Bar with Display

SKU: FFMP076 Download PDF

Variant:
  • FFMP076 - UniBar Pressure Sensor - -1 to 600 Bar with Display
Now $781.00
BEFORE   $0.00 Now $781.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover precision with the UniBar pressure sensors, designed to accurately gauge relative pressure in closed systems across a range of -1 to 600 bar With an integrated display, these sensors offer user-friendly operation, making monitoring and management effortless The clear switching status indicator allows for quick identification of sensors that require maintenance Plus, the robust metallic sealing edge at the process connection eliminates the need for additional seals, ensuring a reliable performance you can count on.

Features and Benefits:

    •Simple operation via the display.

    •Piggable with flush mounting.

    •Space-saving process connection thanks to small pressure membrane.

    •Highly visible output indicator.

Specifications:

 Measuring Range 0 ... 250 bar
 Measurement Type relative
 Maximum overload pressure 500 bar
 Bursting pressure 1,000 bar
 Setting Range 4 ... 100 %
 Medium Liquids, gases
 Switching Hysteresis 2 %
 Measuring error < ± 0.5 %
 Temperature Drift 0.025 %/K
 Temperature of medium -25 ... 60 °C
 Ambient temperature -25 ... 80 °C
 Supply Voltage 16 ... 32 V DC
 Current Consumption < 60 mA
 Number of Switching Outputs 1
 Response Time 30 ms
 Switching Output Voltage Drop < 2 V
 Analog Output 0...10 V
 Resolution 10 bit
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Housing Material Plastic, PBT; Plastic, PC
 Material Control Panel Polyester
 Material in contact with media Stainless steel, V4A (1.4404 / 316L); Stainless steel, V4A (1.4435/316L); Rubber, FKM
 Degree of Protection IP67
 Connection M12 × 1; 4-pin
 Process Connection G 1/2" CIP-capable
 MTTFd (EN ISO 13849-1) 1,201.51 a
 Output Analog Output yes
 PNP NO yes
 Adjustable parameters Circuit NC; NC/NO; NO
 Other parameters Selectable measurement range; Switching point
