FFAP211 - Easy-to-Use Pressure Sensor, Ranges -1 to 600 Bar

FFAP211 - Easy-to-Use Pressure Sensor, Ranges -1 to 600 Bar

SKU: FFAP211 Download PDF

Variant:
  • FFAP211 - Easy-to-Use Pressure Sensor, Ranges -1 to 600 Bar
Now $828.00
BEFORE   $0.00 Now $828.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

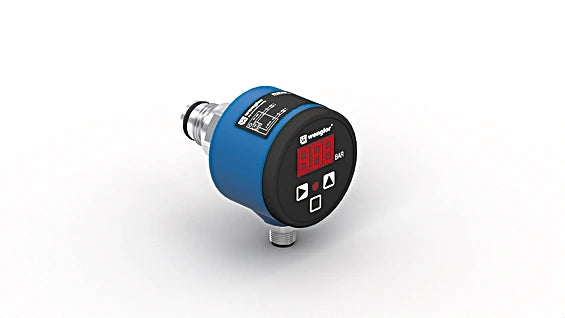

Experience precise measurements with the UniBar pressure sensors, designed to monitor relative pressure within closed systems across a range of -1 to 600 bar These sensors come equipped with an integrated display for straightforward operation, while the clear switching status indicator allows for easy identification of sensors that require maintenance.

Features and Benefits:

    •Simple operation via the display.

    •Piggable with flush mounting.

    •Space-saving process connection thanks to small pressure membrane.

    •Highly visible output indicator.

Specifications:

 Measuring Range 0...400 bar
 Measurement Type relative
 Maximum overload pressure 800 bar
 Bursting pressure 1,600 bar
 Setting Range 4...100 %
 Medium Liquids, gases
 Switching Hysteresis 2 %
 Measuring error < ± 0.5 %
 Temperature Drift 0.025 %/K
 Temperature of medium -25...80 °C
 Ambient temperature -25...80 °C
 EMC DIN EN 61326-2-3
 Shock resistance 30 g / 11 ms
 Vibration resistance 20 g (10...2000 Hz)
 Supply Voltage 16...32 V DC
 Current Consumption < 60 mA
 Number of Switching Outputs 1
 Response Time 30 ms
 Relay Output / Switching Current (24 VDC) < 1 A
 Analog Output yes
 Signal source Pressure
 Resolution 10 bit
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Setting Method Menu
 Housing Material Plastic, PBT, Plastic, PC
 Material Control Panel Polyester
 Material in contact with media Stainless steel, V4A (1.4404 / 316L), Stainless steel, V4A (1.4435/316L), Rubber, FKM
 Degree of Protection IP67 *
 Connection M12 × 1; 5-pin
 Process Connection G 1/2"
 MTTFd (EN ISO 13849-1) 769.77 a
 Relay -NO yes
 Adjustable parameters Circuit NC, NC/NO, NO
 Other parameters Selectable measurement range
