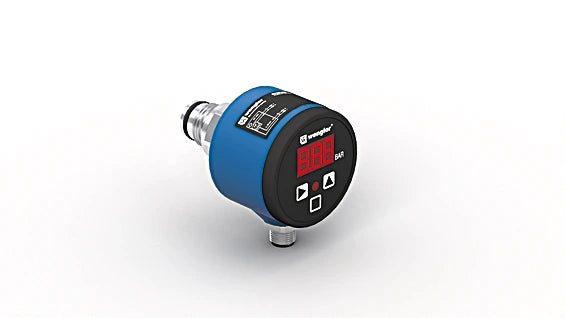

FFAP200 - UniBar 600 Bar Pressure Sensor with Integrated Display

FFAP200 - UniBar 600 Bar Pressure Sensor with Integrated Display

SKU: FFAP200 Download PDF

Variant:
  • FFAP200 - UniBar 600 Bar Pressure Sensor with Integrated Display
Now $721.00
BEFORE   $0.00 Now $721.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing UniBar pressure sensors, expertly crafted for measuring relative pressure in closed systems across a range of -1 to 600 bar Each sensor is equipped with a user-friendly integrated display, making operation straightforward Additionally, the sensors offer a prominent switching status indicator, allowing for quick and easy identification of those needing maintenance These features not only simplify usage but also provide essential measurement capabilities for various applications.

Features and Benefits:

    •Simple operation via the display.

    •Piggable with flush mounting.

    •Space-saving process connection due to small pressure membrane.

    •Highly visible output indicator.

    •Applicable for measuring pressure in liquids and gases.

Specifications:

 Measuring Range 0 ... 25 bar
 Measurement Type relative
 Maximum overload pressure 50 bar
 Bursting pressure 100 bar
 Setting Range 4 ... 100 %
 Switching Hysteresis 2 %
 Measuring error < ± 0.5 %
 Temperature Drift 0.025 %/K
 Temperature of medium -25 ... 80 °C
 Ambient temperature -25 ... 80 °C
 EMC DIN EN 61326-2-3
 Shock resistance 30 g / 11 ms
 Vibration resistance 20 g (10...2000 Hz)
 Supply Voltage 16 ... 32 V DC
 Current Consumption < 60 mA
 Number of Switching Outputs 1
 Response Time 30 ms
 Relay Output / Switching Current < 1 A
 Analog Output yes
 Resolution 10 bit
 Current Output Load Resistance < 500 Ohm
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Protection Class III
 Setting Method Menu
 Housing Material Plastic, PBT, Plastic, PC
 Material Control Panel Polyester
 Material in contact with media Stainless steel, V4A (1.4404 / 316L), Rubber, FKM
 Degree of Protection IP67
 Connection M12 × 1; 5-pin
 Process Connection G 1/2"
 MTTFd 769.77 a
 Relay -NO yes
 Adjustable parameters Circuit (NC, NC/NO, NO), Selectable measurement range
