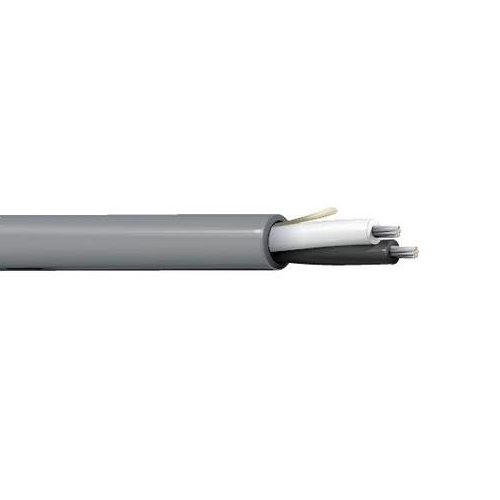

Belden 6500UH 22 AWG 2 Conductor 7x30 Stranding Tinned Copper 300V Security and Commercial Audio Cable

Description:-

Security and Commercial Audio Cable, Plenum-CMP 2-22 AWG stranded tinned copper conductors with Flamarrest insulation, Flamarrest jacket with ripcord.

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.0095 in (0.24 mm)
• Nom. Insulation Diameter: 0.048 in (1.2 mm)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.126 in
• Overall Cable Diameter (Nominal): 0.126 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -20°C To +75°C

Applications:-

• Intercom/PA Systems and Sound/Audio Systems

Specifications:-

• Size (AWG): 22
• No. of Conductor: 2
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 6500UH
