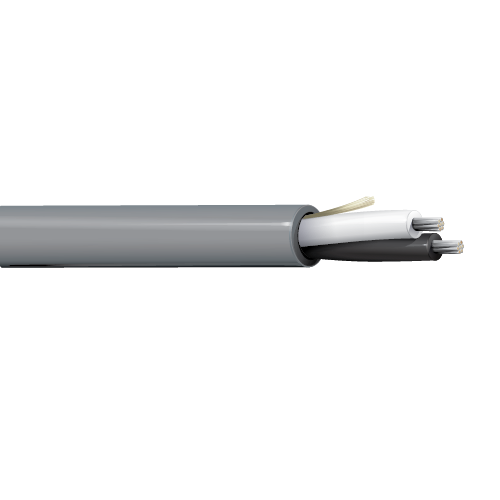

Belden 5300UH 18 AWG 2 Conductor 7x26 Stranding Tinned Copper 300V Security and Sound Cable

Description:-

Security and Commercial Audio Cable, 2 Conductor 18 AWG stranded (7x26) tinned copper conductors with polyolefin insulation, Riser, PVC jacket with ripcord.

Insulation:-

• Material: PP - Polypropylene
• Nominal Wall Thickness: 0.008 in

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nominal Wall Thickness: 0.017 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Operating Temperature Range: -20°C To +75°C

Applications:-

• Monitor/Detection, Control Circuits, Initiating Circuits, Notification Circuits

Specifications:-

• Size (AWG): 18
• No. of Conductors: 2
• Stranding: 7x26
• Conductor Material: TC - Tinned Copper
• Part Number: 5300UH
