Belden 6000UH 12 AWG 2 Conductor 19x25 Stranding Tinned Copper 300V Security and Sound Cable

Belden 6000UH 12 AWG 2 Conductor 19x25 Stranding Tinned Copper 300V Security and Sound Cable

SKU: NES6000UH   Download PDF

Select a gauge:
  • Belden 6000UH 12 AWG 2 Conductor 19x25 Stranding Tinned Copper 300V Security and Sound Cable
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $1.28 /FT   Web pricing policy
BEFORE   Now $1.28 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Belden 6000UH 12 AWG 2 Conductor 19x25 Stranding Tinned Copper 300V Security and Sound Cable

Description:

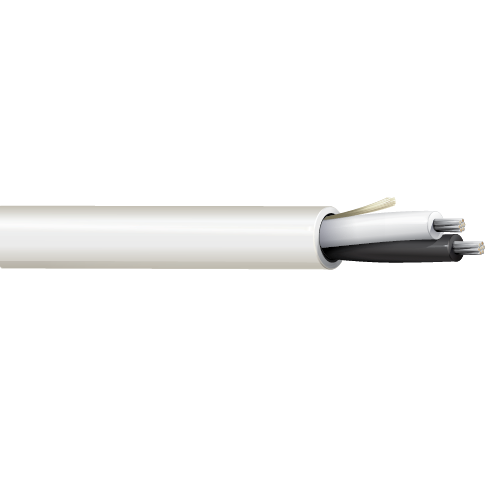

Security and Commercial Audio Cable, 2 Conductor 12 AWG stranded (19x25) tinned copper conductors with Flamarrest insulation, Plenum, Flamarrest jacket with ripcord.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.01 in (0.25 mm)
• Nom. Insulation Diameter: 0.111 in (2.82 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.252 in
• Overall Cable Diameter (Nominal): 0.252 in

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -20°C To +75°C

Applications:

• Intercom/PA Systems, Sound/Audio Systems

Specifications:

• Size (AWG): 12
• No. of Conductor: 2
• Stranding: 19x25
• Conductor Material: TC - Tinned Copper
• Part Number: 6000UH
