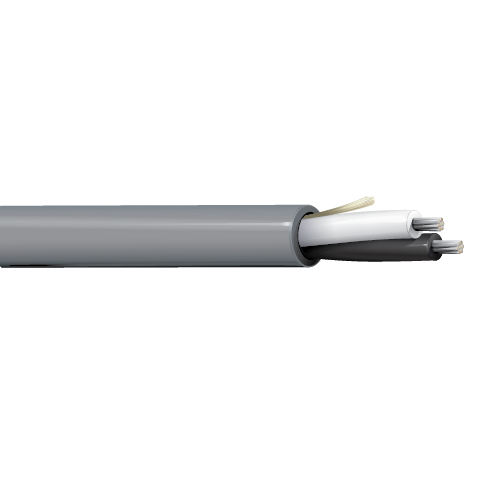

Belden 5000UH 12 AWG 2 Conductor 19x25 Stranding Tinned Copper 300V Security and Sound Cable

Description:-

Security and Commercial Audio Cable, Riser-CL3R-FPLR 2-12 AWG stranded tinned copper conductors with polyolefin insulation, PVC jacket with ripcord.

Insulation:-

• Material: PP - Polypropylene
• Nom. Insulation Diameter: 0.011 in

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)

Standards:-

• UL Voltage Rating: 300 V RMS
• Operating Temperature Range: -20°C To +75°C

Applications:-

• Intercom/PA Systems, Sound/Audio Systems, Fire Alarm (For color Red only)(Dual Rated)

Specifications:-

• Size (AWG): 12
• No. of Conductors: 2
• Stranding: 19x25
• Conductor Material: TC - Tinned Copper
• Part Number: 5000UH
