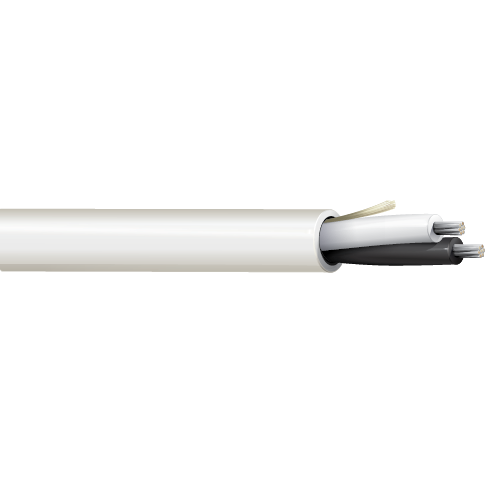

Belden 6400UH 20 AWG 2 Conductor 7x28 Stranding Tinned Copper 300V Security and Sound Cable

Description:-

Security and Commercial Audio Cable, 2 Conductor 20 AWG stranded (7x28) tinned copper conductors with Flamarrest insulation, Plenum, Flamarres jacket with ripcord.

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.008 in (0.20 mm)
• Nom. Insulation Diameter: 0.052 in mm

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.134 in
• Overall Cable Diameter (Nominal): 0.134 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: 0°C to +75°C

Applications:-

• Intercom/PA Systems, Sound/Audio Systems

Specifications:-

• Size (AWG): 20
• No. of Conductors: 2
• Stranding: 7x28
• Conductor Material: TC - Tinned Copper
• Part Number: 6400UH
