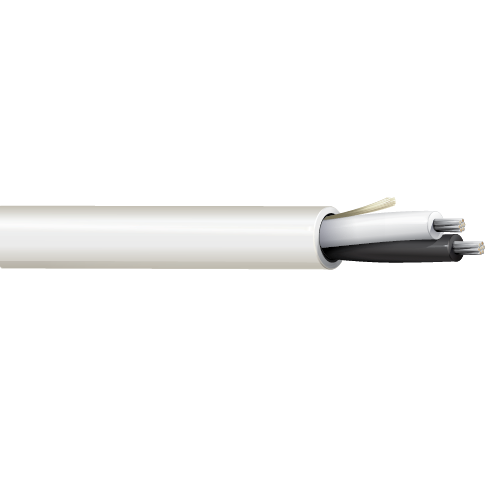

Belden 6200UH 16 AWG 2 Conductor 19x29 Stranding Tinned Copper 300V Security and Sound Cable

Belden 6200UH 16 AWG 2 Conductor 19x29 Stranding Tinned Copper 300V Security and Sound Cable

SKU: NES6200UH   Download PDF

Select a gauge:
  • Belden 6200UH 16 AWG 2 Conductor 19x29 Stranding Tinned Copper 300V Security and Sound Cable
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $0.52 /FT   Web pricing policy
BEFORE   Now $0.52 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Belden 6200UH 16 AWG 2 Conductor 19x29 Stranding Tinned Copper 300V Security and Sound Cable

Description:

Security and Commercial Audio Cable, 2 Conductor 16 AWG stranded (19x29) tinned copper conductors with Flamarrest insulation, Plenum, Flamarrest jacket with ripcord.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.009 in (0.23 mm)
• Nom. Insulation Diameter: 0.077 in (2.0 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.184 in
• Overall Cable Diameter (Nominal): 0.184 in

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -20°C To +75°C

Applications:

• Intercom/PA Systems, Sound/Audio Systems

Specifications:

• Size (AWG): 16
• No. of Conductor: 2
• Stranding: 19x29
• Conductor Material: TC - Tinned Copper
• Part Number: 6200UH
