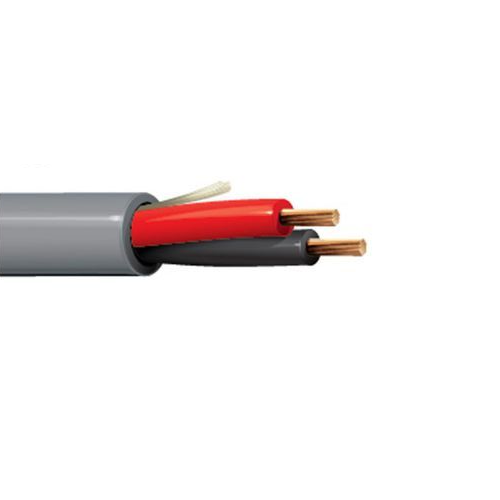

Belden 5400UH 20 AWG 2 Conductor 7x28 Stranding Bare Copper 300V Security and Sound Cable

Description:-

Security and Commercial Audio Cable, 2 Conductor 20 AWG stranded (7x28) tinned copper conductors with polyolefin insulation, PVC jacket with ripcord, Riser rated.

Insulation:-

• Material: PP - Polypropylene
• Nominal Diameter: 0.052 in

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.138 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Operating Temperature Range: -5°C To +75°C

Applications:-

• Security Systems, Intercom/PA Systems, Sound/Audio Systems, Power Limited Controls, Single Line Telephone

Specifications:-

• Size (AWG): 20
• No. of Conductors: 2
• Stranding: 7x28
• Nominal Diameter: 0.036 in
• Conductor Material: BC - Bare Copper
• Part Number: 5400UH
