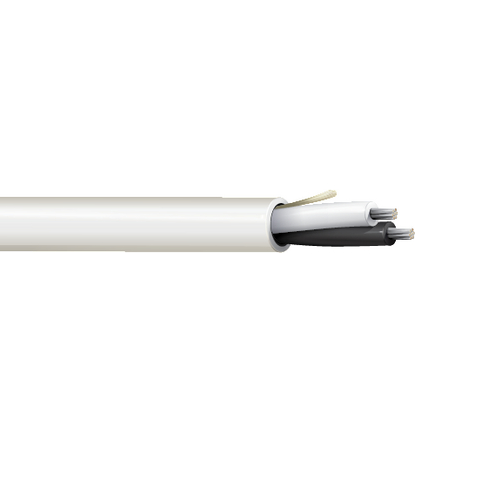

Belden 6100UH 14 AWG 2 Conductor 19x26 Stranding Tinned Copper 300V Security and Sound Cable

Description:-

Security and Commercial Audio Cable, 2 Conductor 14 AWG stranded (19x27) tinned copper conductors with Flamarrest insulation, Plenum, Flamarrest jacket with ripcord.

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.011 in (0.28 mm)
• Nom. Insulation Diameter: 0.098 in (2.5 mm)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.226 in
• Overall Cable Diameter (Nominal): 0.226 in

Applications:

• Intercom/PA Systems, Sound/Audio Systems

Standards:-

• UL Voltage Rating: 300V
• Operating Temperature Range: -20°C To +75°C

Specifications:-

• Size (AWG): 14
• No. of Conductor: 2
• Stranding: 19x26
• Conductor Material: TC - Tinned Copper
• Part Number: 6100UH
