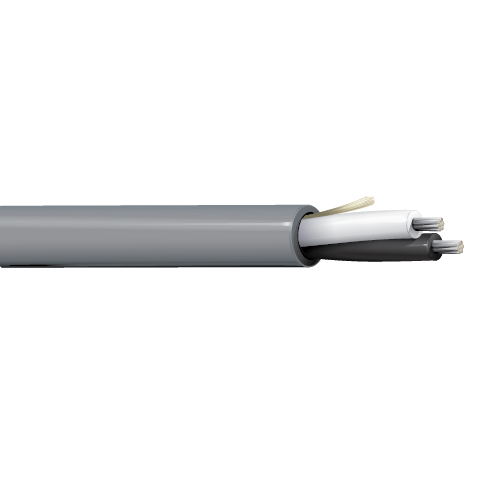

Belden 5200UH 16 AWG 2 Conductor 19x29 Stranding Tinned Copper 300V Security and Sound Cable

Description:-

Security and Commercial Audio Cable, 2 Conductor 16 AWG stranded (19x29) tinned copper conductors with polyolefin insulation, Riser, PVC jacket with ripcord.

Insulation:-

• Material: PP - Polypropylene
• Nom. Thickness: 0.008 in (0.20 mm)
• Nom. Insulation Diameter: 0.075 in (1.9 mm)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Diameter: 0.184 in
• Overall Cable Diameter (Nominal): 0.184 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: 0°C to +75°C

Applications:-

• Data Circuits, Monitor/Detection, Control Circuits, Initiating Circuits, Notification Circuits

Specifications:-

• Size (AWG): 16
• No. of Conductors: 2
• Stranding: 19x29
• Conductor Material: TC - Tinned Copper
• Part Number: 5200UH
