9028530000 - Automatic Wire Stripper & Crimper, 0.5-2.5mm²

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

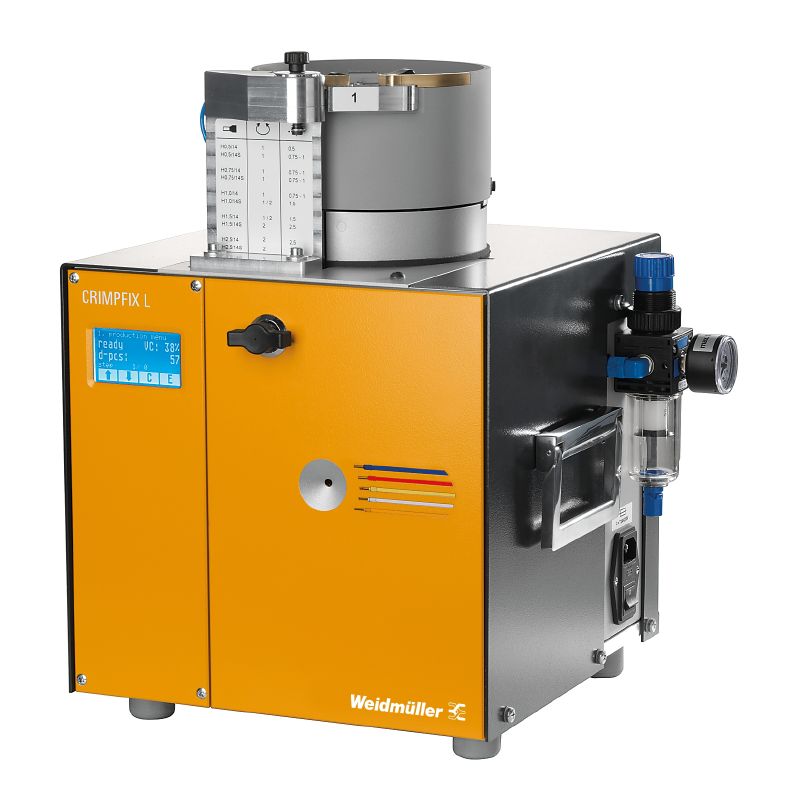

Introducing the CRIMPFIX L, a highly efficient automatic stripper and crimper tailored for managing wires and cables This device adheres to RoHS standards and carries necessary approvals, ensuring reliable performance It expertly processes wire end ferrules with a cross-sectional area between 05 mm² to 25 mm², accommodating crimp lengths of up to 8 mm Powered by an electropneumatic drive, the CRIMPFIX L requires a compressed-air connection with a pressure range of 5 to 5.

5 bar and operates on electrical connections of 100-240 V This tool features a quick pulse time of approximately 1 second, enhancing its functionality and efficiency for various tasks.

Features and Benefits:

•Automatic stripping and crimping functionalities.

•RoHS compliant.

•Electropneumatic drive.

•Compressed-air connection between 5 to 5.5 bar.

•Can process wire end ferrules with cross-sections up to 2.5 mm².

•Stripping range of 0.5 - 2.5 mm².

Specifications:
